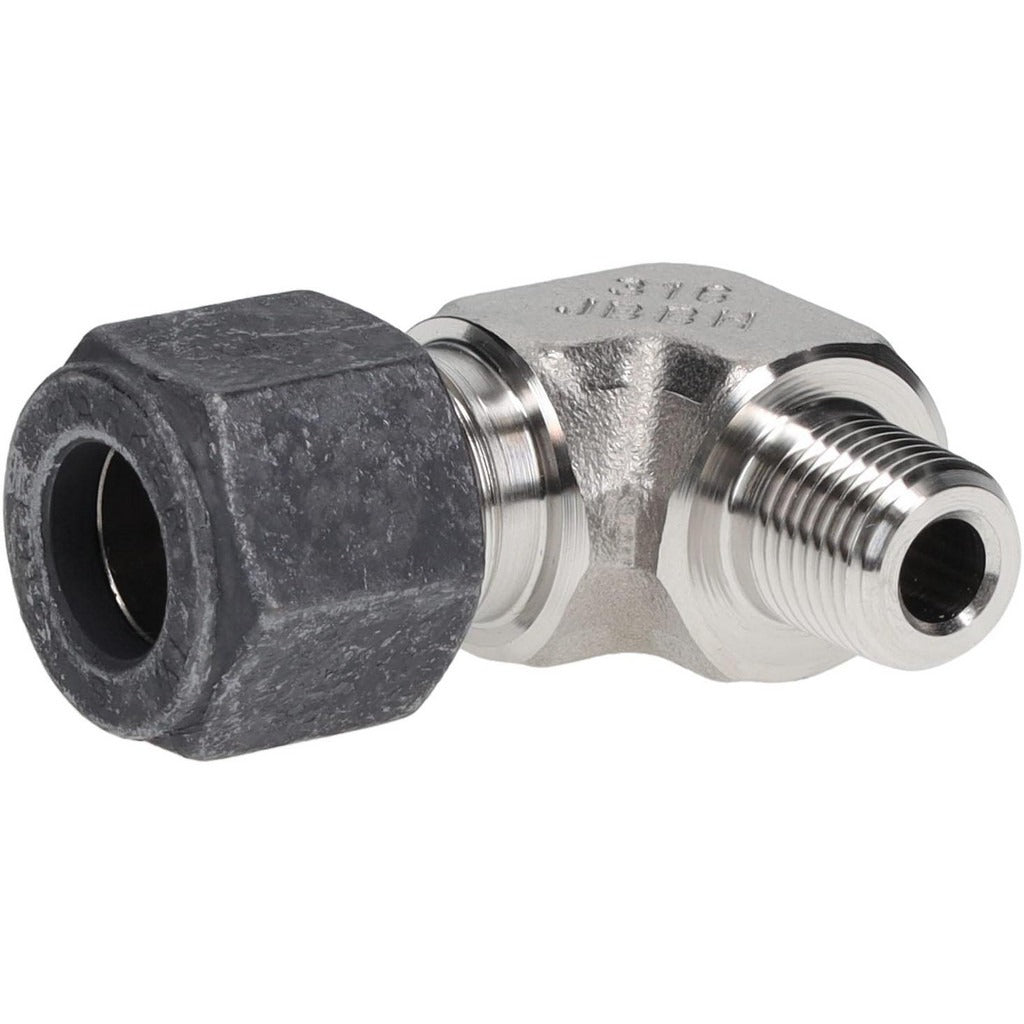

Parker 6-2 Cbz-ss Compression Male Elbow 3/8 Od 1/8 Mnpt Ss

Product Description

The PARKER 6-2 CBZ-SS is a compression tube male elbow fitting machined from stainless steel for use in instrumentation, fluid transfer, and process piping applications. It connects a 3/8-inch OD tube to a 1/8-inch male NPT port using a compression-style end on the tube side, eliminating the need for flare or solder connections. Rated to 6600 psi maximum working pressure, this fitting is built for high-pressure service in demanding environments. It is installed by plumbers, pipefitters, and instrumentation technicians working on hydraulic, pneumatic, and fluid control systems.

This elbow fitting is suited for residential, commercial, and industrial installations where a 90-degree directional change is needed between a compression tube line and a male NPT threaded port. Typical applications include control panels, refrigeration systems, hydraulic circuits, and instrumentation tubing runs. The compression end accepts 3/8-inch OD tubing without welding or soldering, making it a practical choice for field assembly and service work on tight schedules.

Key Features

• Stainless steel construction provides corrosion resistance in wet, chemical, or high-humidity environments
• 6600 psi maximum working pressure rating for high-pressure hydraulic and pneumatic service
• Compression x MNPT end connections allow tool-accessible field assembly without soldering or flaring
• 3/8-inch OD tube compression end paired with 1/8-inch male NPT thread
• 90-degree elbow geometry routes tubing in space-constrained panel and equipment installations

Compatibility

Designed as an OEM-style compression tube fitting for use with 3/8-inch OD tubing and 1/8-inch male NPT threaded ports in hydraulic, pneumatic, instrumentation, and fluid transfer systems.

Installation Notes

This fitting is typically installed by licensed plumbers, pipefitters, or instrumentation technicians. Shut off and depressurize the system completely before removing or installing any compression fitting. Ensure the tube end is cut square and deburred before seating it into the compression ferrule. Follow applicable codes including ASME B31.1 or B31.3 for pressure piping systems where required.
