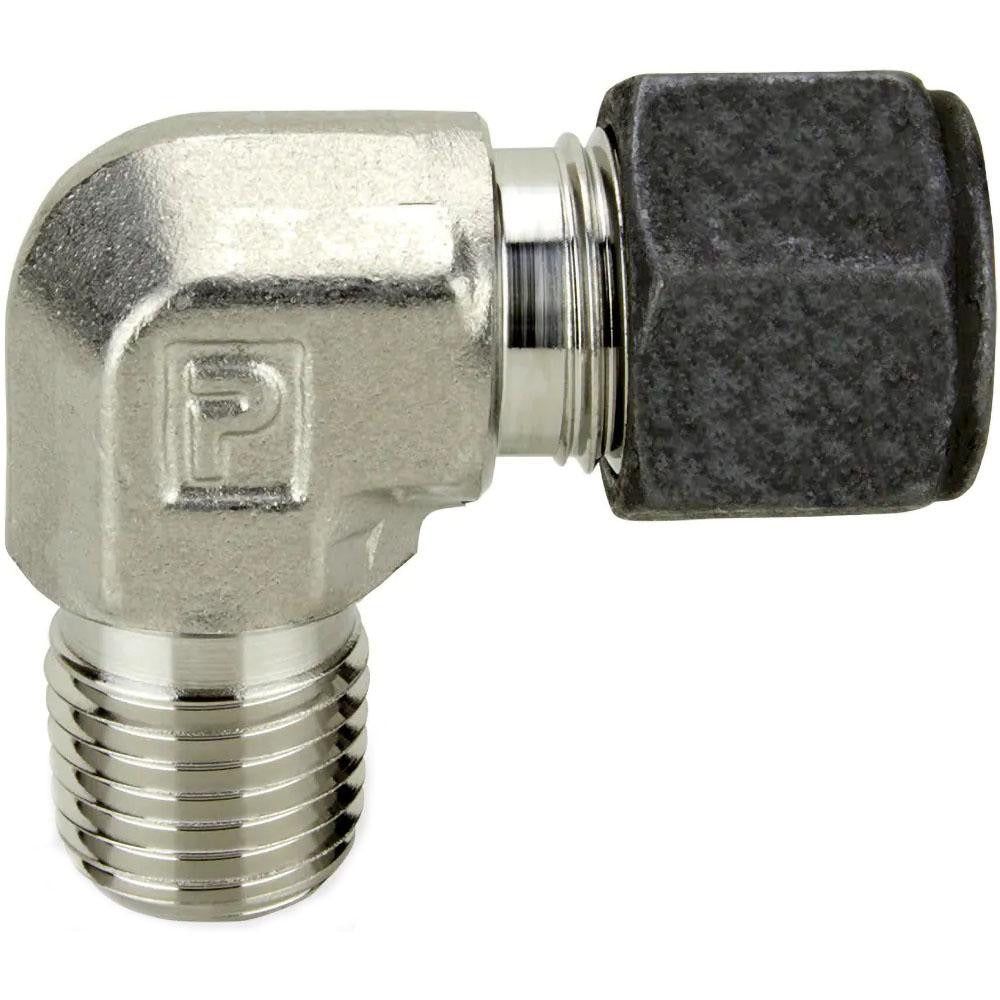

Parker 6-12 Cbz-ss Compression Male Elbow 3/4 in Ss

Product Description

The PARKER 6-12 CBZ-SS is a compression tube male elbow fitting machined from stainless steel and designed to create a 90-degree directional change in tubing runs where a compression connection meets a male NPT threaded port. It handles a maximum working pressure of 6,600 psi, making it suitable for high-pressure fluid and gas lines in demanding service environments. The fitting uses a compression end on one side and a 3/4-inch male NPT thread on the other. Plumbers, pipefitters, and hydraulic system technicians install this type of fitting in instrumentation, pneumatic, and process piping applications where corrosion resistance and leak-free performance are required.

This fitting is intended for use in systems where stainless steel construction is specified for corrosion resistance or cleanliness requirements. Typical applications include industrial process lines, hydraulic instrumentation circuits, chemical handling systems, and other high-pressure tubing assemblies. The compression-by-MNPT configuration suits installations where a tube run must terminate into a threaded port on a valve, manifold, or equipment fitting with a 3/4-inch NPT connection.

Key Features

• Stainless steel construction provides corrosion resistance for harsh or chemical-exposure environments
• Maximum working pressure rated at 6,600 psi for high-pressure service
• 3/4-inch male NPT thread end connects directly to standard NPT-ported valves and equipment
• Compression end provides a reliable, repeat-serviceable tube connection without welding or brazing
• Male elbow configuration allows a 90-degree direction change in tight plumbing layouts

Compatibility

Designed as an OEM-style compression tube male elbow fitting for high-pressure tubing systems requiring a 3/4-inch MNPT port connection with a compression tube end in stainless steel construction.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter familiar with high-pressure compression fittings and applicable codes. Depressurize and isolate the system completely before disassembly or installation. Compression fittings require proper tube preparation including clean, square cuts and verified tube OD sizing to ensure a leak-free ferrule seat. Do not overtighten the compression nut, as this can deform the ferrule and compromise the seal.
