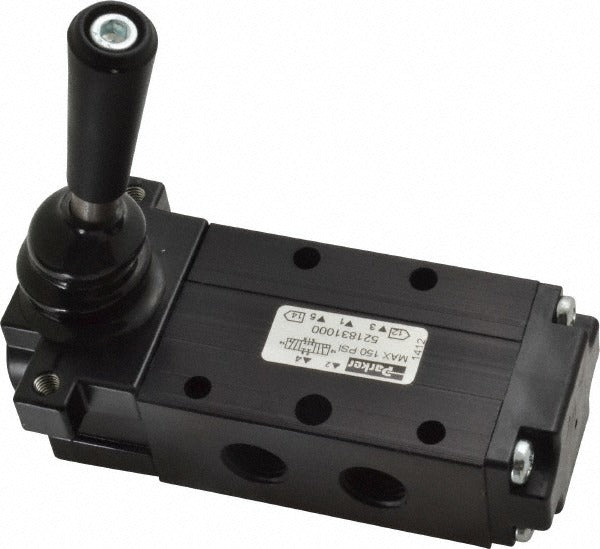

Parker 521831000 4-way 3-position Valve 1/4 Inch Npt

Product Description

The PARKER 521831000 is a mechanically operated directional control valve designed for industrial pneumatic and hydraulic circuit control. Configured as a 4-way, 3-position valve with a lever-manual return actuator, it shifts fluid flow between multiple circuit paths and returns to center position when the lever is released. The valve features a Cv rating of 0.83 and a working pressure range of 0 to 150 psi, with 1/4 inch NPT inlet and outlet ports. It is installed by maintenance technicians and fluid power specialists in industrial machinery, automated equipment, and process control systems.

This valve is suited for applications requiring manual directional control of pneumatic actuators, cylinders, or hydraulic circuits in light industrial and manufacturing environments. The 5-port, 2-position switching configuration makes it a practical fit for controlling double-acting cylinders or reversible motor circuits. Operating temperatures range from 32 degrees F to 175 degrees F, making it appropriate for standard indoor industrial service where ambient conditions remain within that envelope.

Key Features

• 4-way, 3-position closed-center (CC) valve configuration for reliable directional flow control
• Lever-manual return actuator with detented return type for operator-controlled positioning
• 1/4 inch NPT inlet and outlet ports for straightforward inline installation
• Cv rating of 0.83 supports flow capacity appropriate for light-duty pneumatic circuits
• Rated for 0 to 150 psi working pressure across a 32 degrees F to 175 degrees F temperature range
• 5-port design accommodates standard double-acting actuator circuit configurations

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial pneumatic and hydraulic directional control circuits requiring a 4-way, 3-position mechanically operated valve with 1/4 inch NPT porting.

Installation Notes

Installation should be performed by a qualified fluid power technician or industrial maintenance professional. Before servicing or replacing this valve, depressurize the circuit completely and lock out the energy source per applicable OSHA lockout/tagout procedures. Verify that all port thread connections match 1/4 inch NPT fittings and use appropriate thread sealant compatible with the system fluid. Confirm working pressure and temperature of the application do not exceed the valve ratings before returning the circuit to service.
