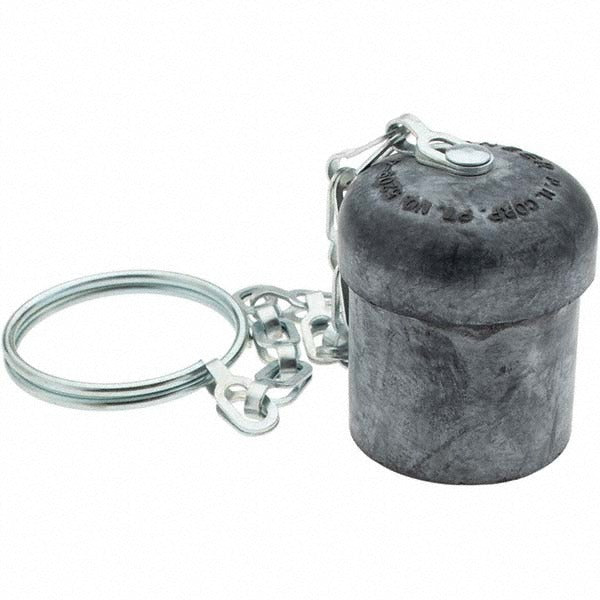

Parker 5209-4-787 Hydraulic Hose Coupler Dust Cap 0.5 in

Product Description

The PARKER 5209-4-787 is a rubber dust cap designed to protect hydraulic hose coupler ends from contamination, debris, and moisture when the hose is disconnected or in storage. This cap fits couplers with a 0.5 inch inside diameter, corresponding to a size 8 hose designation. Keeping coupler faces clean between connections helps prevent particle ingestion into hydraulic systems, which is a leading cause of valve and cylinder wear. Hydraulic technicians and fluid power mechanics install these caps as a standard housekeeping measure on mobile equipment, industrial machinery, and any hydraulic circuit that sees frequent connect-disconnect cycles.

This dust cap is suited for use in residential, commercial, and industrial hydraulic applications wherever a half-inch coupler end needs to be capped during service, transport, or storage. Typical scenarios include capping remote hydraulic lines on skid steers, tractors, and other mobile equipment, as well as protecting test port fittings and quick-disconnect ends on stationary hydraulic power units. The rubber construction allows the cap to seat snugly over metal coupler bodies without scratching or damaging sealing surfaces.

Key Features

• Fits 0.5 inch inside diameter coupler ends, size 8 hose designation
• Rubber construction provides flexible, snug fit over metal coupler bodies
• Protects coupler face and seals from dirt, debris, and moisture during disconnect
• Lightweight at 0.01 pounds, suitable for keeping multiples on hand in a service kit
• Sold individually, minimum order quantity of 5 units

Compatibility

Designed as an OEM-style protective cap for hydraulic hose couplers with a 0.5 inch inside diameter and a size 8 hose designation.

Installation Notes

Installation requires no tools. Depressurize and isolate the hydraulic circuit fully before disconnecting any hose end, then wipe the coupler face clean before seating the cap. Ensure the cap is fully seated before moving or storing the hose assembly. Inspect caps for cracking or deformation before reuse, as degraded rubber will not seal the coupler face reliably.
