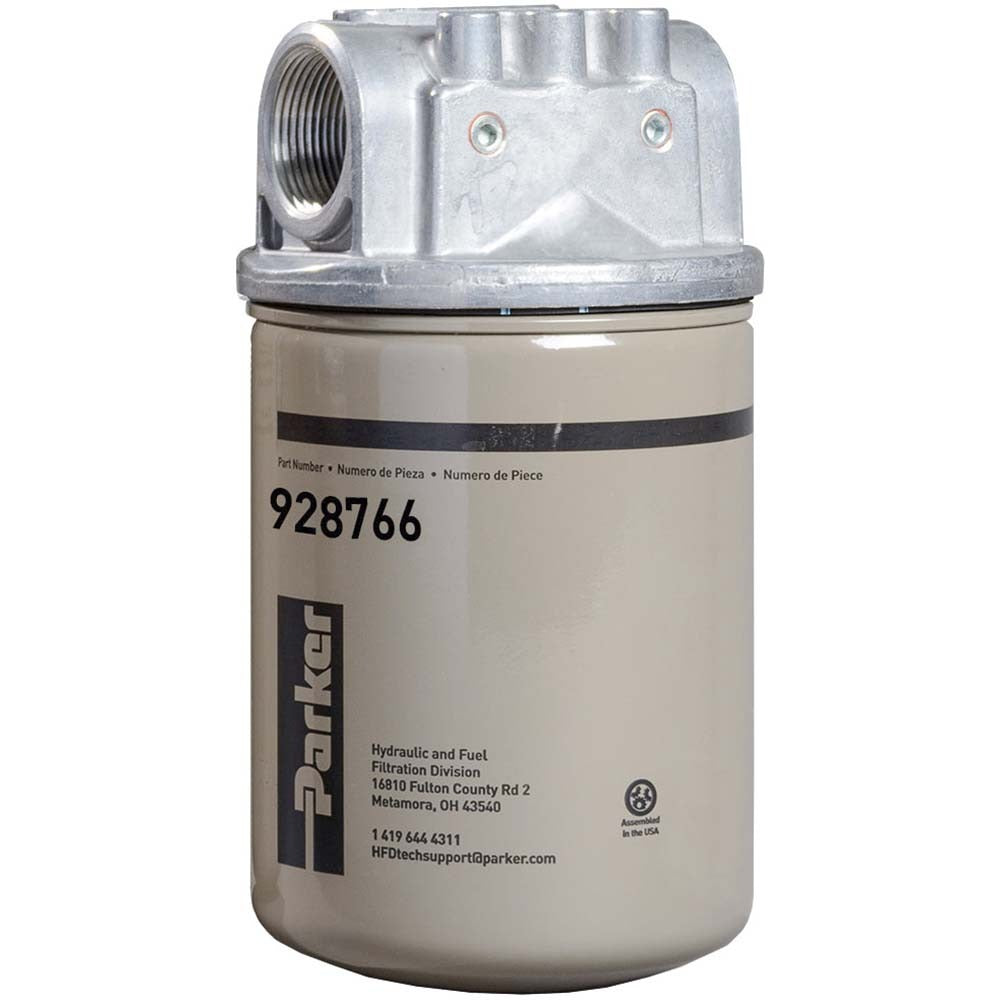

Parker 50AT110BBPGN20H Hydraulic Filter Assembly 10 Micron

Product Description

The PARKER 50AT110BBPGN20H is a hydraulic filter assembly designed to remove particulate contamination from hydraulic fluid circuits. It uses a 10-micron fiberglass microglass media to capture fine particles that can cause wear and failure in pumps, valves, and actuators. The body is constructed from low carbon steel and aluminum, and the assembly seals with nitrile material rated for operating temperatures from -40 to 225 degrees F. Maximum working pressure is 150 psi. The 1-1/4 inch NPTF threaded port allows direct inline installation on standard hydraulic plumbing. This assembly is installed by hydraulic system technicians and industrial maintenance professionals.

This filter assembly is suited for inline hydraulic system applications in industrial and mobile equipment environments. It is typically installed on return or pressure lines where fluid cleanliness is critical to system longevity. The 1-1/4 inch NPT port size accommodates common pipe sizes used in mid-range hydraulic circuits. The nitrile seal material is compatible with petroleum-based hydraulic fluids commonly found in these systems. No specific OEM system compatibility was provided in the product data.

Key Features

• 10-micron fiberglass microglass media removes fine particulate from hydraulic fluid
• Low carbon steel and aluminum body construction for durability in industrial service
• Nitrile seals rated for operating temperatures from -40 to 225 degrees F
• Maximum pressure rating of 150 psi
• 1-1/4 inch NPTF threaded port for standard inline installation
• Compact assembly design simplifies replacement and serviceability

Compatibility

Designed as an OEM-style replacement or direct-fit hydraulic filter assembly for inline hydraulic circuits using 1-1/4 inch NPT threaded connections and petroleum-compatible fluid systems rated up to 150 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing the filter assembly. Use appropriate thread sealant approved for hydraulic service on the NPTF threads, and avoid over-tightening to prevent damage to the port. Verify system pressure does not exceed the 150 psi maximum rating of the assembly before returning to service.
