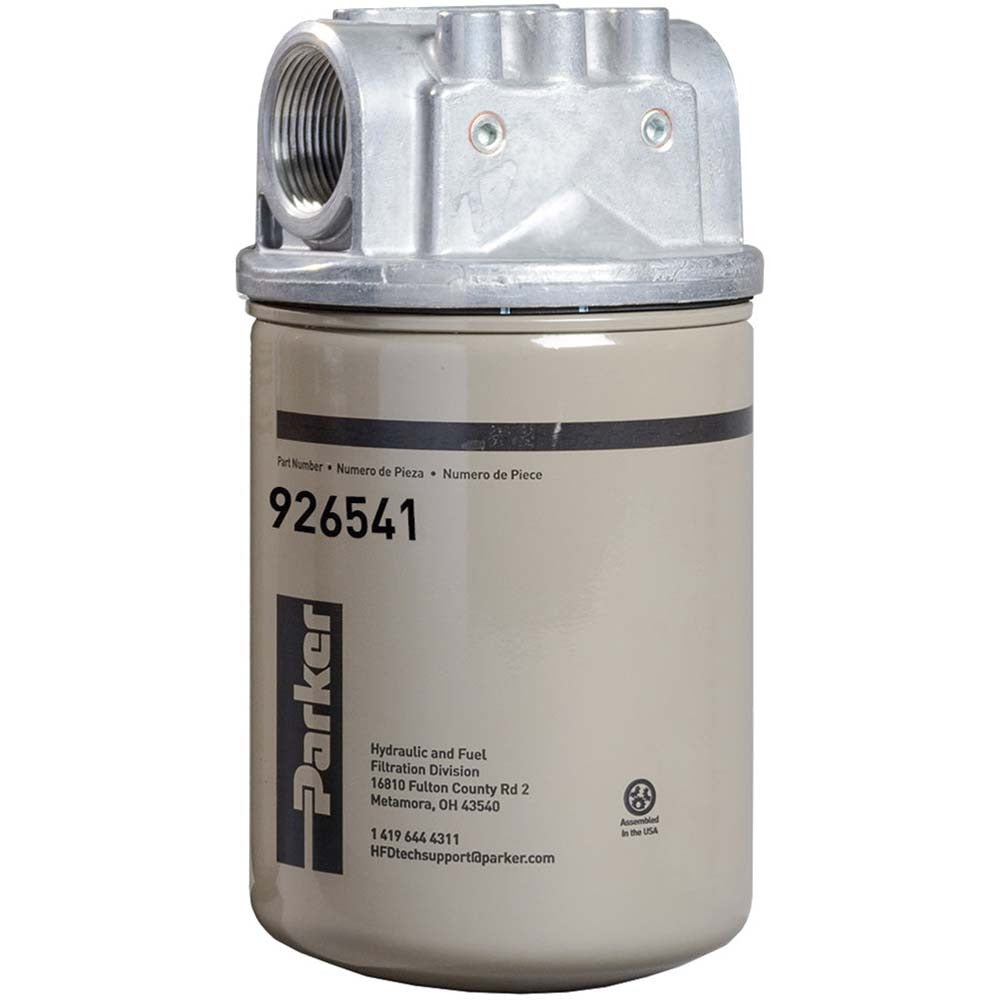

Parker 50AT103CBPGN20H Hydraulic Filter Assembly 3 Micron

Product Description

The PARKER 50AT103CBPGN20H is a hydraulic filter assembly designed to remove particulate contamination from hydraulic fluid circuits. Rated at 3 microns with cellulose media, it provides effective filtration for systems where fluid cleanliness directly affects component life and performance. The body is constructed from low carbon steel and aluminum, and the assembly uses a 1-1/4 inch NPTF threaded port for direct inline installation. Rated to 150 psi maximum working pressure and an operating temperature range of -40 to 225 degrees F, this filter suits a broad range of industrial and mobile hydraulic applications. Installation is handled by hydraulic system technicians and maintenance professionals.

This filter assembly is suited for use in industrial hydraulic power units, mobile equipment hydraulic circuits, and stationary machinery where 3-micron filtration is specified. The 1-1/4 inch NPT port size accommodates common mid-flow hydraulic line connections. The nitrile seal material is compatible with petroleum-based and many synthetic hydraulic fluids. It is appropriate for both new installations and replacement service intervals in systems operating within the rated pressure and temperature parameters.

Key Features

• 3-micron cellulose filter media for fine particulate removal from hydraulic circuits
• Low carbon steel and aluminum body construction for durability and reduced weight
• 1-1/4 inch NPTF threaded port for straightforward inline installation
• Nitrile seals compatible with petroleum-based hydraulic fluids
• Rated to 150 psi maximum operating pressure
• Wide operating temperature range of -40 to 225 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation hydraulic filter assembly for systems requiring a 1-1/4 inch NPT threaded inline filter rated at 3 microns and 150 psi maximum pressure.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and de-energize the hydraulic system completely before removing or installing any filter assembly. Verify port thread compatibility and apply appropriate thread sealant per system requirements before torquing to the fitting. Inspect seals for proper seating after installation and cycle the system at low pressure to check for leaks before returning to full operation.
