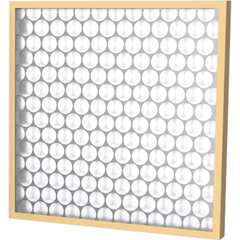

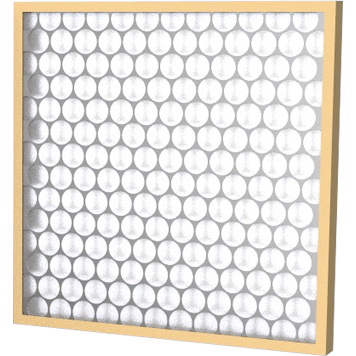

Parker 5042193767 P312 disposable panel filter synthetic media 18X25X1 12 pack FIL18X25X1

Product Description

The Parker 5042193767 P312 is a disposable panel filter featuring synthetic media, engineered for effective HVAC air filtration. This air filter is designed for use in environments with significant dust and lint, ensuring cleaner air. It has a nominal filter size of 18X25X1 inches and an actual depth of 0.875 inch, with a maximum operating temperature of 200 °F. It is classified per UL Standard 900 for flammability.

• Disposable panel filter with synthetic media for efficient air filtration.
• Designed for environments with large quantities of dust and lint.
• Classified per UL Standard 900 for Flammability.

Product Highlights

This Parker P312 disposable panel filter offers robust air filtration for HVAC systems, effectively managing dust and lint in demanding environments.

Product Information

Standard Information

• Brand: PARKER
• Manufacturer Part Number: 5042193767
• Country of Origin: United States

Technical Specifications

• Model Number: P312-STD1
• Nominal Filter Size: 18X25X1
• Model Number Variant: P312-STD1 18X25X1 LR
• Brand: Parker
• Division: HVAC Filtration Division
• Industry: HVAC and Refrigeration
• Application: HVAC Air Filtration
• Technology: Filtration
• Product Type: Air Filter
• Product Style: HVAC Frame System
• Fluid Type: Air
• Actual Width: 17.875 inch
• Actual Height: 24.625 inch
• Actual Depth: 0.875 inch
• Air Filter Frame Type: Pinch Frame
• Materials of Construction: Heavy Duty Kraft Board Frame
• Filter Material: Polyester
• Media Color: White
• Initial Resistance: 0.07 in wg
• Rated Air Velocity: 300 ft/min
• Maximum Operating Temperature: 200 °F
• Package Quantity: 12
• Certifications: Classified per UL Standard 900 for Flammability
• Manufacturer Name: PARKER HANNIFIN CORP/CLARCOR
• Manufacturer Part Number: 5042193767
• Alternate Part Number: FIL18X25X1
• Item Number: 18X25X1
