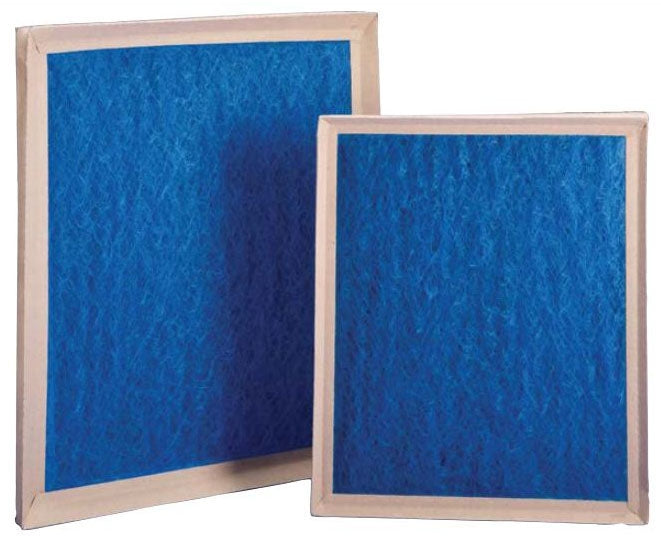

Parker 5038901040 F312 - Disposable Fiberglass Media Panel Filter 16x30x1

Product Description

The PARKER 5038901040 F312 is a disposable panel filter with superior-grade fiberglass media, engineered for robust air filtration in industrial and commercial HVAC applications. It effectively manages high levels of dust and lint, ensuring full-depth loading and high dust holding capacity. The unique Monobond pinch frame concept creates a continuous bond of media to the board, eliminating weak corners and air bypass, and withstands varying temperatures and humidity.

• Pinch frame design improves rigidity and prevents leakages
• Superior-grade fiberglass media guarantees full-depth loading and high dust holding capacity
• Improved aerodynamics reduces restriction to air flow

Product Highlights

Heavy-duty disposable panel filter for industrial and commercial air filtration.

Product Information

Standard Information

• Brand: PARKER
• Manufacturer Part Number: 5038901040

Technical Specifications

• Nominal Filter Size: 16x30x1 (WxHxD)
• Model: F312-STD1
• Product Type: Panel Filters
• Product Style: HVAC Frame System
• Fluid Type: Air
• Actual Width: 15.875 inch
• Actual Height: 29.875 inch
• Actual Depth: 0.875 inch
• Weight: 5.6 lb
• Frame Type: 1-Piece, Unique Monobond Pinch Frame
• Construction Material: Heavy duty kraft frame, superior grade fiberglass media, polyethylene binder
• Filter Material: Fiberglass
• Initial Resistance: 0.07 in wg
• Final Resistance: 0.5 Inch WG
• Rated Air Velocity: 300 ft/min
• Max Operating Temperature: 150 °F (66 °C)
• Certifications: UL Class 2, UL (Canada and US), ASHRAE 52.1
• Average Arrestance: 72 - 75%
• Filter Type: Disposable, Industrial Strength
