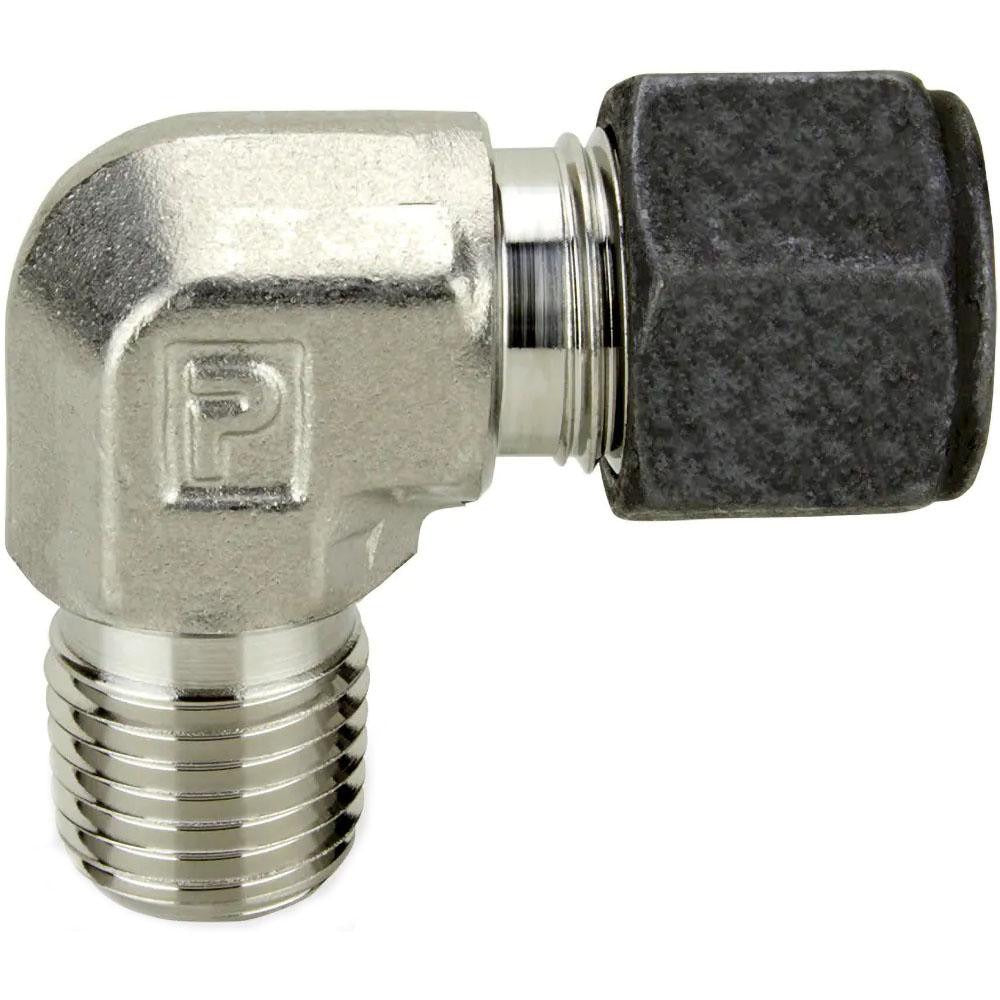

Parker 5-4 Cbz-ss Compression Male Elbow 1/4 in Ss

Product Description

The PARKER 5-4 CBZ-SS is a compression tube male elbow fitting designed to connect tubing to a male NPT threaded port at a 90-degree angle. Constructed from stainless steel, it provides corrosion resistance suitable for demanding fluid and gas handling applications. The fitting features a 1/4-inch thread size with a Compression x MNPT end connection configuration and is rated for a maximum working pressure of 8100 psi. This type of fitting is installed by licensed plumbers, HVAC technicians, and industrial pipefitters who require a reliable, leak-resistant tube-to-pipe transition in tight spaces or where a directional change in the line is needed.

This male elbow fitting is used in hydraulic, pneumatic, instrumentation, and process piping systems where stainless steel construction is required for corrosion resistance or sanitary compliance. Typical applications include refrigeration lines, compressed air systems, chemical fluid transfer, and instrumentation tubing runs in both commercial and industrial environments. The compression end accepts standard tubing while the MNPT end threads directly into a female-threaded port or fitting body.

Key Features

• Stainless steel construction for corrosion resistance in harsh or wet environments
• Maximum working pressure of 8100 psi for high-pressure system compatibility
• 1/4-inch thread size with Compression x MNPT end connections
• 90-degree male elbow geometry allows directional changes in tubing runs without additional adapters
• MPT thread standard for broad compatibility with standard female NPT ports

Compatibility

Designed as an OEM-style compression tube male elbow replacement or addition for systems using 1/4-inch Compression x MNPT fittings in stainless steel configurations.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or HVAC technician following applicable codes such as ASME B31.1 or B31.3 for pressure piping. Depressurize and isolate the system completely before removing or installing any compression fitting. Use appropriate tube cutters and deburring tools to ensure a clean, square tube end before seating into the compression sleeve. Do not overtighten the compression nut, as this can deform the ferrule and compromise the seal.
