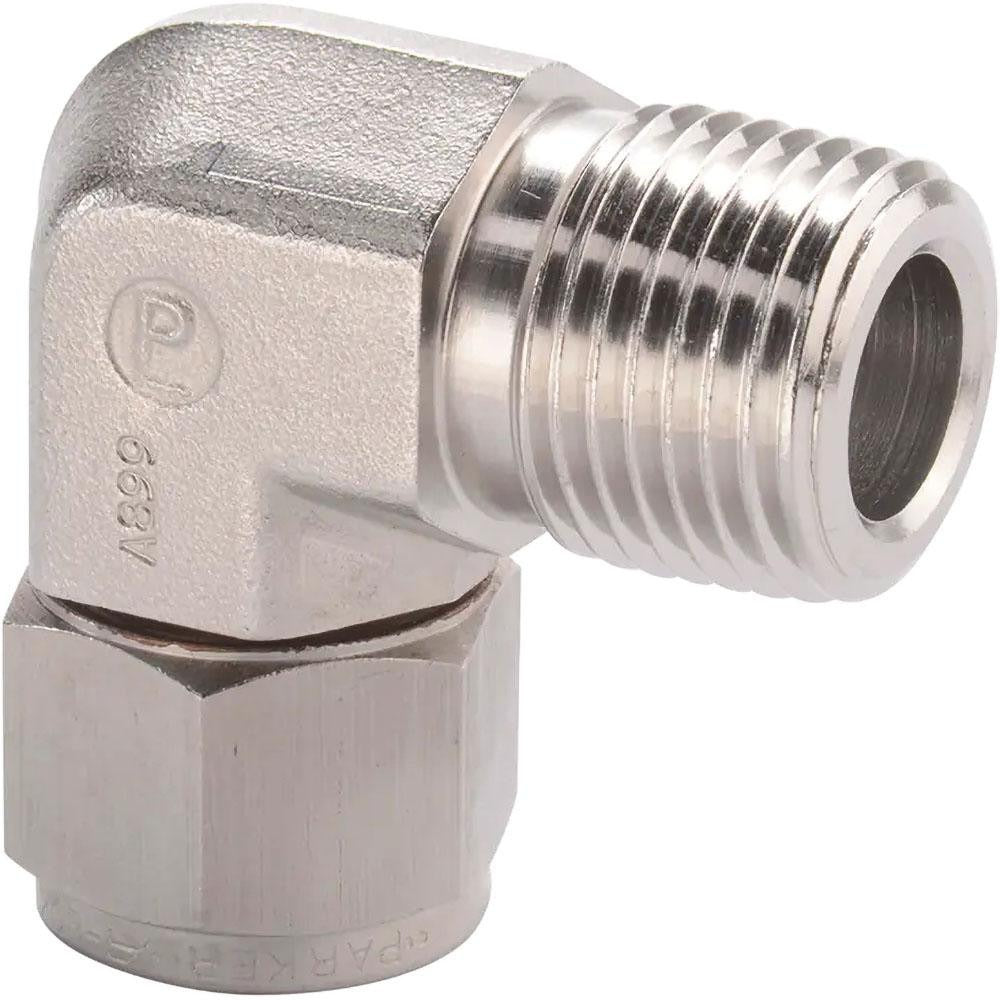

Parker 4MSEL8N-316 Compression Male Elbow 1/2-14 Npt

Product Description

The PARKER 4MSEL8N-316 is a stainless steel compression tube male elbow fitting designed to connect compression tubing to a male NPT threaded port at a 90-degree angle. The fitting features a 1/2-14 NPT thread size with Compression x MNPT end connections. Built from 316 stainless steel, it is rated for a maximum working pressure of 10,300 psi and handles an extreme temperature range from -425 degrees F to 1,200 degrees F. This fitting is installed by licensed plumbers, pipefitters, and industrial technicians in high-pressure fluid and gas systems where reliable leak-free connections are required.

This male elbow fitting is suited for use in industrial, chemical processing, oil and gas, instrumentation, and high-pressure hydraulic applications. Its stainless steel construction makes it appropriate for corrosive media and harsh service environments. The Compression x MNPT configuration allows a direct transition from compression tubing to a male NPT threaded component, simplifying installation in tight or angled routing situations where a straight fitting is not practical.

Key Features

• 316 stainless steel construction for corrosion resistance in demanding service environments
• Maximum working pressure of 10,300 psi for high-pressure system compatibility
• Extreme temperature range: -425 degrees F to 1,200 degrees F
• 1/2-14 NPT thread size with Compression x MNPT end connections
• 90-degree male elbow geometry for angled tube routing

Compatibility

Designed as an OEM-style replacement or direct-install compression tube male elbow fitting for high-pressure instrumentation and fluid system applications using 1/2-14 NPT threaded ports.

Installation Notes

Installation should be performed by a qualified pipefitter or plumber in accordance with applicable codes such as ASME B31.3 for process piping. Depressurize and isolate the system fully before making or breaking any connections. Use appropriate thread sealant rated for the service media and pressure on the NPT male threads. Do not over-torque the compression nut, as this can deform the ferrule and compromise the seal integrity.
