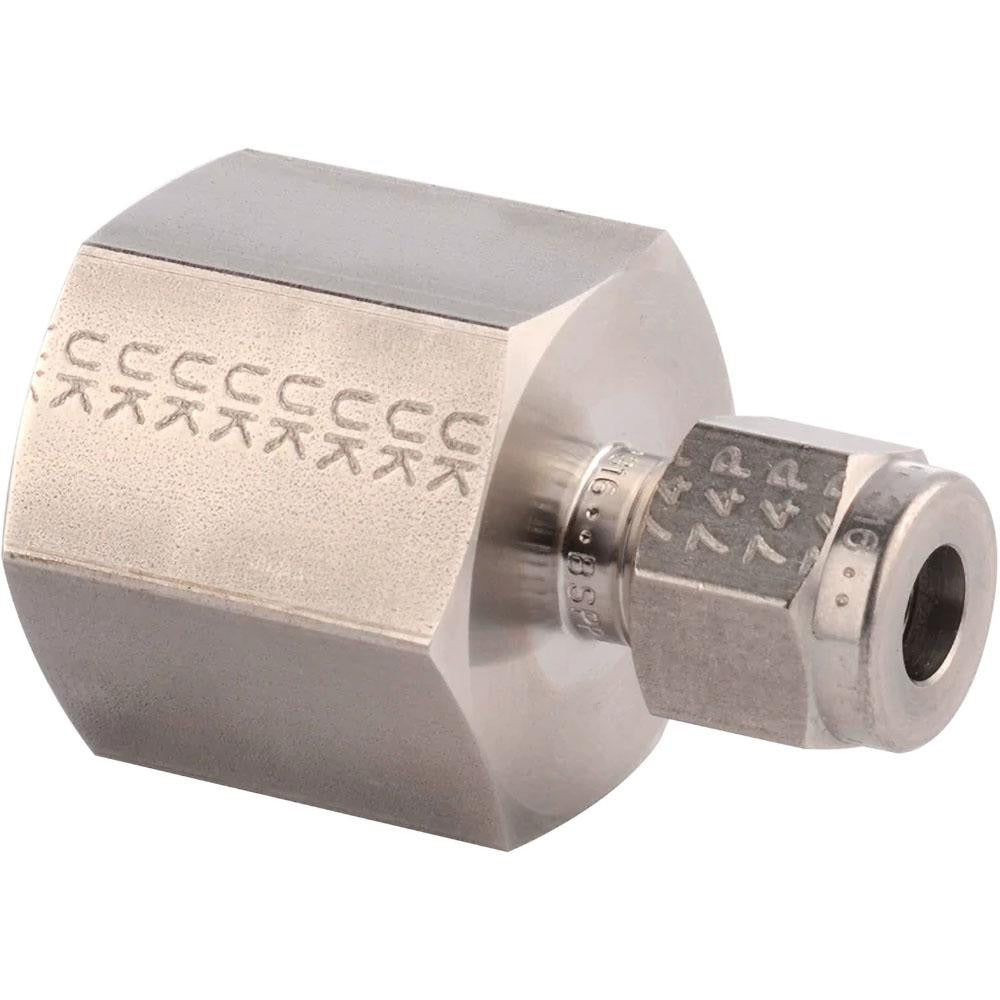

Parker 4FSC8N-316 Compression Tube Connector 1/2-14 Npt

Product Description

The PARKER 4FSC8N-316 is a stainless steel compression tube connector designed to join tubing to female NPT threaded ports in fluid and gas systems. It transitions from a compression-style tube end to a 1/2-14 FNPT threaded connection, providing a reliable, leak-resistant joint without welding or brazing. The 316 stainless steel construction supports extreme service conditions, with a maximum working pressure of 10,300 psi and a temperature range from -425 degrees F to 1,200 degrees F. Plumbers, pipefitters, and instrumentation technicians install this fitting in high-pressure or corrosive-environment applications where standard brass fittings are not suitable.

This connector is suited for use in industrial process lines, instrumentation tubing runs, hydraulic systems, and chemical or cryogenic service where both high pressure and wide temperature swings are expected. The compression-to-FNPT configuration makes it a common choice when connecting tubing directly to valves, manifolds, gauges, or other threaded female-port components in demanding residential, commercial, or industrial settings.

Key Features

• 316 stainless steel construction resists corrosion in aggressive media and harsh environments
• Maximum working pressure of 10,300 psi for high-pressure system compatibility
• Wide service temperature range from -425 degrees F to 1,200 degrees F covers cryogenic through elevated-heat applications
• Compression x FNPT end connections simplify tube-to-threaded-port transitions without welding
• 1/2-14 NPT thread standard ensures broad compatibility with standard NPT-threaded components

Compatibility

Designed as an OEM-style compression-to-FNPT connector for use in high-pressure fluid and gas tubing systems that require 1/2-14 NPT threaded female port connections.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or instrumentation technician in accordance with applicable codes such as ASME B31.3 for process piping. Depressurize and isolate the system completely before removing or installing any fitting. Ensure tubing is cut square and fully deburred before seating it into the compression fitting body, and tighten the compression nut to the fitting manufacturer's recommended procedure to achieve a proper ferrule bite. Do not overtighten, as this can deform the ferrule and compromise the seal.
