Parker 48F-8-4 Male Connector 45° Flare - 1/2 Inch Replacement SAE 010102

Product Description

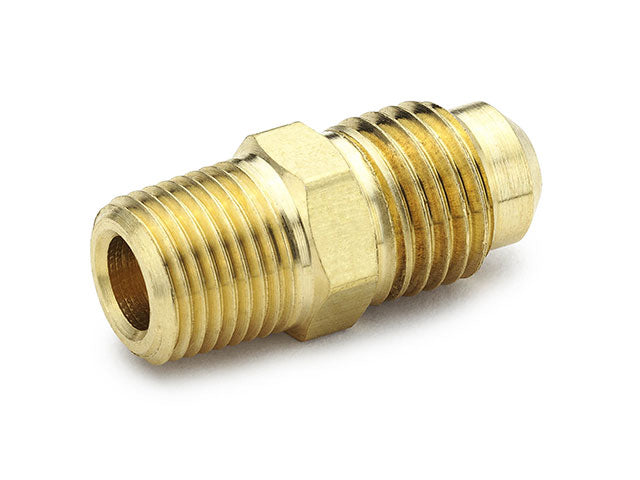

The Parker 48F-8-4 is a male connector designed for 45 degree flare applications. It meets the specifications outlined in SAE J512 and J513 standards. This connector is compatible with copper, brass, aluminum, or steel tubing which can be flared to 45 degrees. It is suitable for a variety of fluid system connections.

• Meets SAE J512 and J513 compliance
• Pressure rating of 750 PSI
• Operating temperature range from -65°F to +250°F

Product Highlights

This male connector offers reliable connections in fluid transfer applications while providing strong resistance to high pressures and temperatures.

Product Information

Standard Information

• Manufacturer: Parker
• Material: Brass

Technical Specifications

• Outer Diameter 1: 1/2 Inch
• Thread 1: 3/4-16 UN/UNF
• Thread 2: 1/4 NPT
• Series: 45° Flare
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Connector
• Pressure Rating: 750 PSI
• Operating Temperature: -65°F to +250°F
