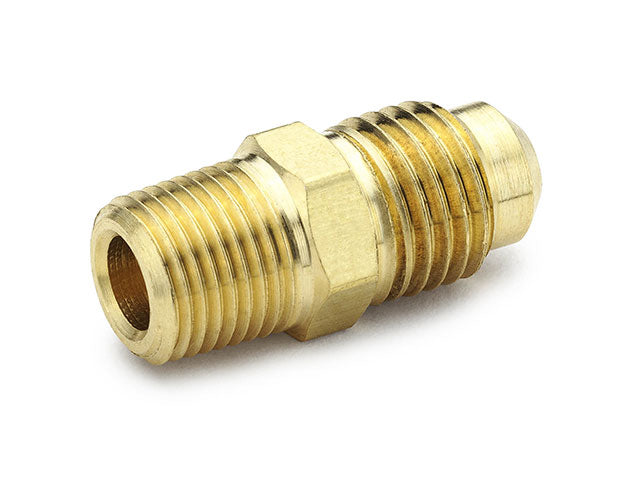

Parker 48F-8-12 Male Connector 48F Fluid Systems Connector

Product Description

The Parker 48F-8-12 is a male connector designed for fluid systems. It meets the standards of SAE J512 and J513, ensuring reliable connections in various applications. This fitting is compatible with copper, brass, aluminum, or steel tubing that can be flared to a forty-five-degree angle.

• Compatible with SAE J512 and J513 specifications
• Suitable for various tubing materials
• Pressure rated up to seven hundred fifty PSI

Product Highlights

This male connector provides secure connections, making it ideal for hydraulic and pneumatic applications in automotive and industrial settings.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 48F-8-12

Technical Specifications

• Outer Diameter: 1/2 Inch
• Thread 1: 3/4-16 UN/UNF
• Thread 2: 3/4 NPT
• Material: Brass
• UOM: EA
• Series: 45° Flare
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Connector
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 750 PSI
