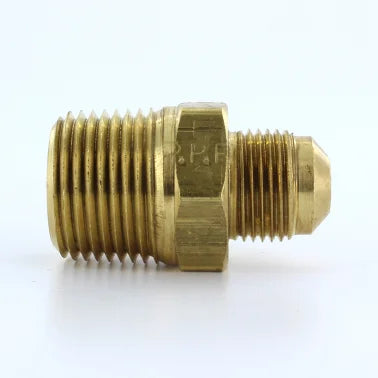

Parker 48F-6-8 Male Connector 48F 45 Degree Flare - SAE J512 and J513

Product Description

The Parker 48F-6-8 is a male connector designed for use with 45-degree flare fittings. This connector adheres to the standards of SAE J512 and J513. It is suitable for copper, brass, aluminum, or steel tubing that can be flared to forty-five degrees. This connector is typically utilized in plumbing and other fluid handling applications.

• Compatible with various types of tubing including copper and brass
• Made from durable brass material
• Pressure rated up to one thousand PSI

Product Highlights

Ideal for connecting pipes in hydraulic and pneumatic systems, ensuring a secure fit.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 48F-6-8

Technical Specifications

• Material: Brass
• Thread 1: 5/8-18 UN/UNF
• Thread 2: 1/2 NPT
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 1000 PSI
• Series: 45 Degree Flare
• Configuration Type: Flare to Male
• Outer Diameter 1: 3/8 Inch
