Parker 48F-5-6 Male Connector 48F Power (1 EA) Replacement MPN

Product Description

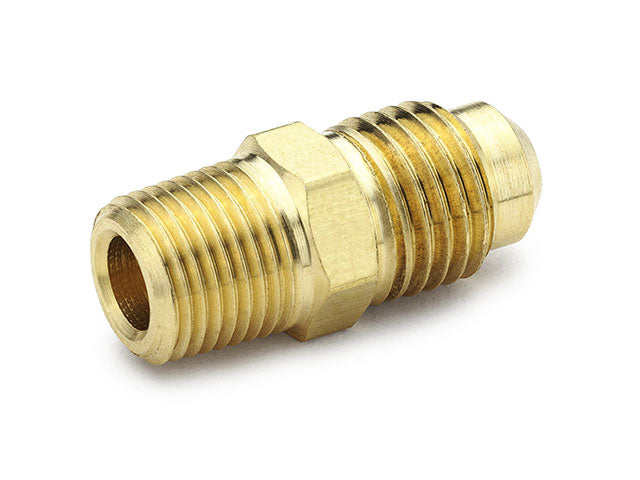

Parker 48F-5-6 is a male connector designed for flared connections. It meets the SAE J512 and J513 standards and is suitable for use with various types of tubing including copper, brass, aluminum, or steel. This connector is built to ensure tight seals and a secure fit in fluid systems.

• Meets SAE J512 and J513 standards
• Operates in temperatures from -65°F to +250°F
• Rated for pressures up to 1200 PSI

Product Highlights

This male connector is ideal for connecting tubing in hydraulic and pneumatic systems.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 48F-5-6

Technical Specifications

• Outer Diameter 1: 5/16 Inch
• Thread 1: 1/2-20 UN/UNF
• Thread 2: 3/8 NPT
• Material: Brass
• Series: 45° Flare
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Connector
• Operating Temperature: -65°F to +250°F
• Parker Division: Fluid Systems Connector (Brass Products)
• Parker Group: Fluid Connector
• SAE Compliance: J512 and J513
• Pressure Rating: 1200 PSI
