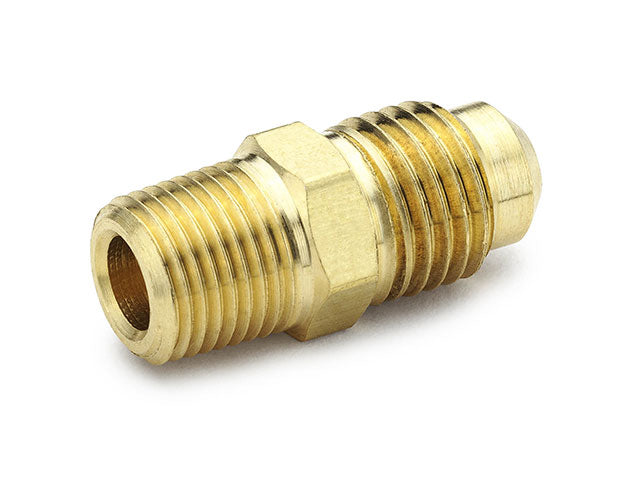

Parker 48F-2-2 Male Connector 48F 45 Degree Flare

Product Description

The Parker MPN 48F-2-2 is a male connector designed for use with 45-degree flare fittings. This connector meets the SAE J512 and J513 standards, making it ideal for a variety of applications. It is compatible with copper, brass, aluminum, or steel tubing that can be flared at 45 degrees.

• Meets SAE J512 and J513 standards
• Designed for use with 45-degree flare fittings
• Compatible with various materials including copper and brass

Product Highlights

This male connector is an essential part for HVAC, plumbing, and other fluid systems requiring secure connections.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 48F-2-2

Technical Specifications

• Outer Diameter: 1/8 Inch
• Thread 1: 5/16-24 UN/UNF
• Thread 2: 1/8 NPT
• Material: Brass
• Series: 45 Degree Flare
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Connector
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 2800 PSI
