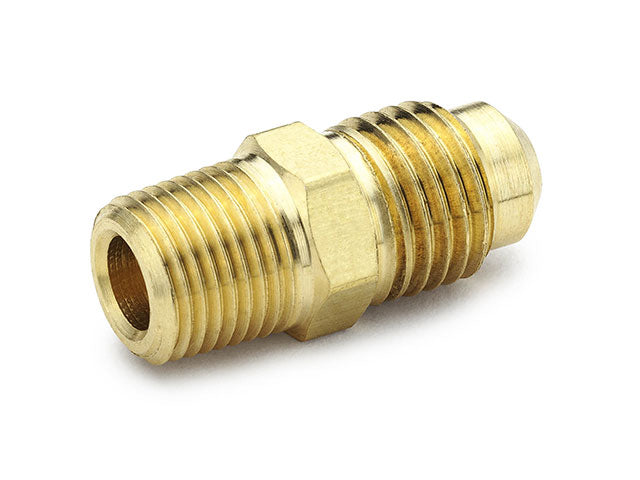

Parker 48F-12-12 Male Connector 48F Flare - 3/4 Inch

Product Description

The Parker 48F-12-12 is a male connector designed for use with copper, brass, aluminum, or steel tubing. It meets the standards outlined in SAE J512 and J513. This product provides a reliable connection with a maximum pressure rating of five hundred fifty PSI. It is suitable for applications that require flared fittings at a forty-five degree angle.

• Constructed from durable brass material.
• Compatible with various tubing types.
• Pressure rated up to five hundred fifty PSI.

Product Highlights

This male connector is ideal for fluid systems requiring a strong and secure connection. It is built to withstand extreme temperatures, making it versatile for different environments.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 48F-12-12

Technical Specifications

• Outer Diameter: 3/4 Inch
• Thread 1: 1-1/16-14 UN/UNF
• Thread 2: 3/4 NPT
• Material: Brass
• Operating Temperature: -65°F to +250°F
• Series: 45° Flare
• Configuration Type: Flare to Male
• SAE Compliance: J512 and J513
