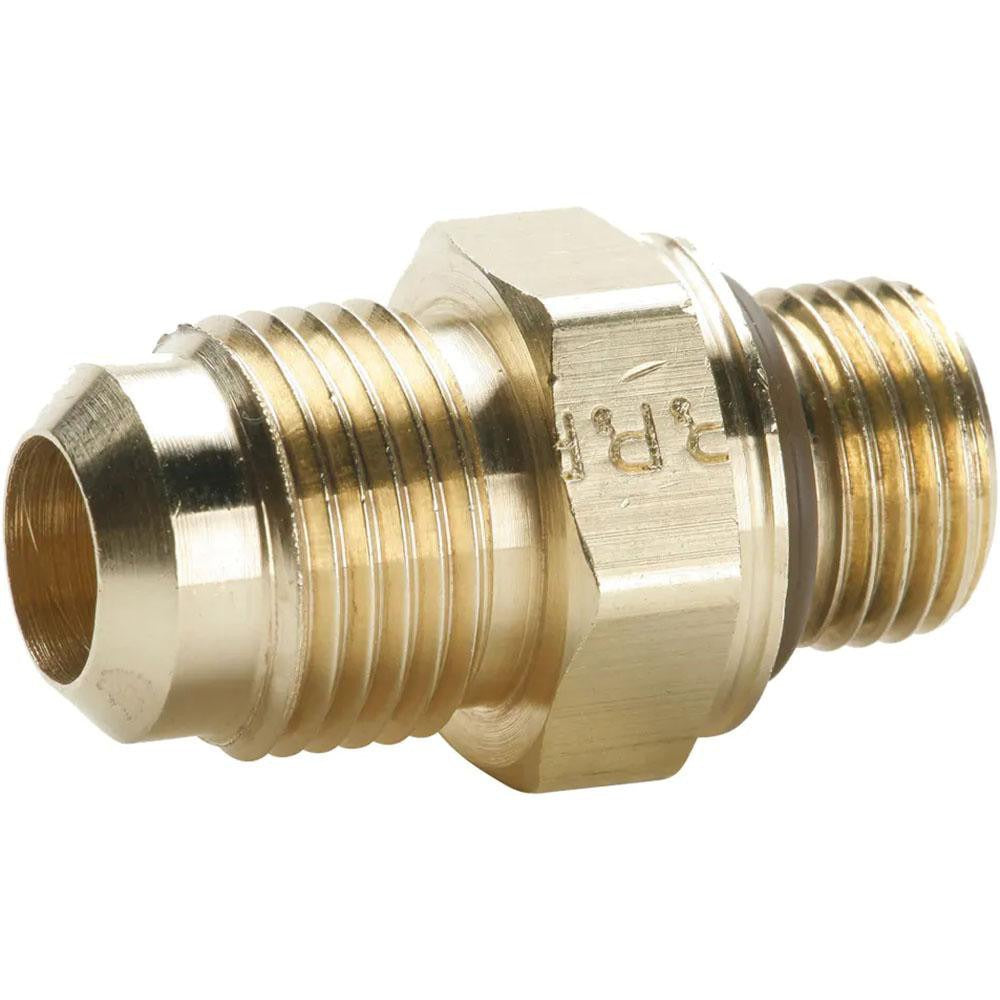

Parker 48F-10-MI27 Brass Iso Port Adapter Flare X Metric

Product Description

The PARKER 48F-10-MI27 is a brass ISO port adapter designed to connect flared tubing to a metric-threaded port in hydraulic and fluid system applications. It features a flare-by-metric adapter configuration with an M27x2 metric thread size, rated for a maximum working pressure of 650 psi. The adapter uses a Viton seal for reliable fluid containment across a wide temperature range, from -65 degrees F up through the rated service conditions. It is a compact, single-piece fitting installed by hydraulic technicians, plumbers, and mechanical contractors working with ISO-compliant porting systems. The brass construction offers good corrosion resistance in compatible fluid environments.

This adapter is suited for use in hydraulic systems, fluid power circuits, and industrial plumbing assemblies where a flared tube connection must mate to an ISO 6149-3 or SAE J2244-3 metric port. Typical installation scenarios include mobile hydraulic equipment, industrial machinery, and fluid conveyance systems requiring a secure flare-to-metric port transition. The M27x2 thread pitch matches the ISO and SAE port standards specified for this fitting.

Key Features

• Flare x metric adapter end connection for flared tubing to ISO metric port applications
• M27x2 metric thread size conforming to ISO 6149-3 and SAE J2244-3 standards
• 650 psi maximum working pressure rating
• Viton seal material for fluid compatibility and temperature resilience
• Brass body construction for corrosion resistance in compatible media
• Rated for operation down to -65 degrees F minimum working temperature

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid power systems using ISO 6149-3 and SAE J2244-3 metric port standards with flared tube connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber. Depressurize and isolate the fluid circuit completely before removing or installing any fittings. Inspect the mating port and flare seat for damage before assembly. Follow ISO 6149-3 and SAE J2244-3 torque and assembly guidelines as applicable to the host system.
