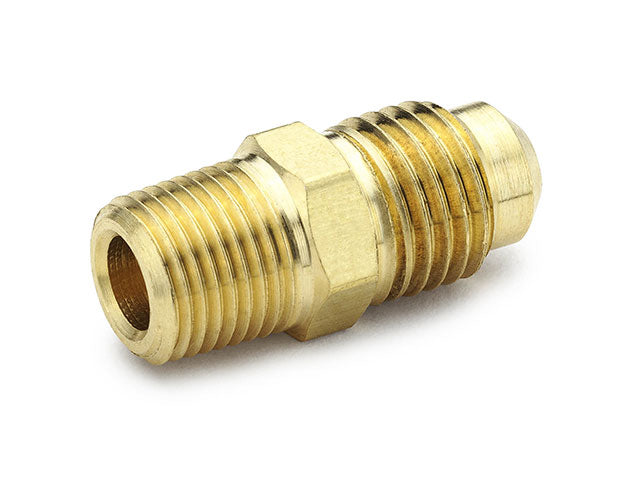

Parker 48F-10-6 Male Connector 48F Flare Brass Replacement MPN

Product Description

Parker 48F-10-6 Male Connector is designed to meet the requirements of SAE J512 and J513. These fittings are suitable for use with copper, brass, aluminum, or steel tubing that can be flared to forty-five degrees.

• Constructed from durable brass.
• Rated for pressure up to six hundred fifty PSI.
• Operates within a temperature range of negative sixty-five degrees Fahrenheit to two hundred fifty degrees Fahrenheit.

Product Highlights

Ideal for plumbing and HVAC applications. This connector ensures a secure and leak-free fit.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 48F-10-6

Technical Specifications

• Outer Diameter: 5/8 Inch
• Thread 1: 7/8-14 UN/UNF
• Thread 2: 3/8 NPT
• Material: Brass
• Series: 45° Flare
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Connector
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 650 PSI
• SAE Compliance: J512 and J513
• SAE Reference: SAE 010102
