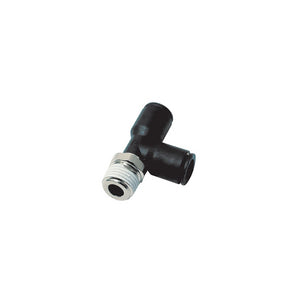

Parker 474745 3103 12 21 LF3000 L-Einschraubanschluss 12mm R1/2

Product Description

The PARKER 474745 3103 12 21 LF3000 L-Einschraubanschluss provides reliable connections for various industrial applications. It is made from technical polymer and stainless steel, ensuring durability. This product complies with ISO 14743 standards and features an R1/2 connection for versatility.

• ISO 14743 compliant
• Constructed from technical polymer and stainless steel
• Operating pressure up to 20 bar

Product Highlights

Designed for applications requiring a minimum operating temperature of negative twenty degrees Celsius and a maximum of eighty degrees Celsius, this product is suitable for both cold and warm environments.

Product Information

Standard Information

• Brand: PARKER
• MPN: 474745

Technical Specifications

• Connection Size: 12 mm
• Fitting Size: 21 mm
• Body Height: 46.5 mm
• Height H1: 15.5 mm
• Length: 31 mm
• Connection Type: R1/2
• Body Material: Polymer
• Sealing Material: Nitrile
• Maximum Operating Pressure: 20 bar
• Minimum Operating Temperature: -20 degrees Celsius
• Maximum Operating Temperature: 80 degrees Celsius
• Vacuum Resistance: 755 mmHg
