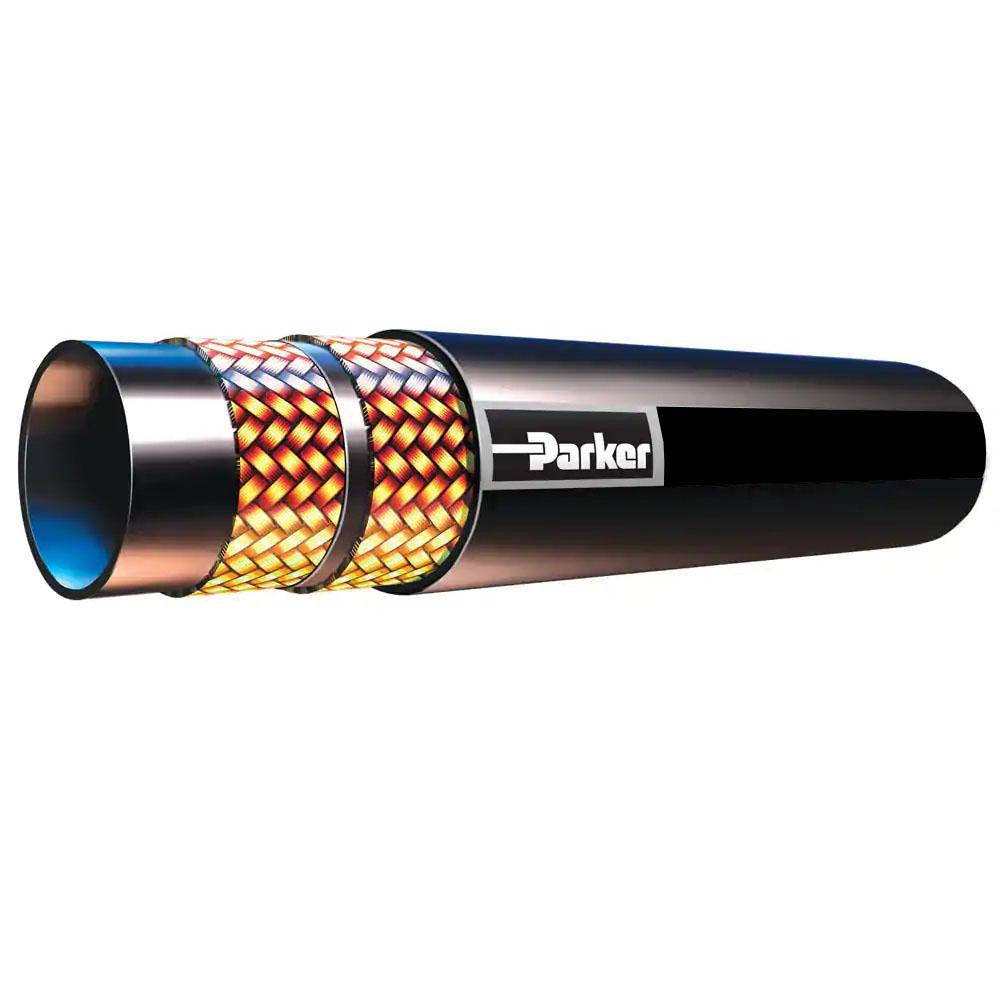

Parker 471TC-6-RL Hydraulic Hose 3/8 in Id 5000 Psi

Product Description

The PARKER 471TC-6-RL is a -6 size hydraulic hose engineered for high-pressure fluid transfer in demanding industrial and mobile hydraulic systems. Built with a synthetic rubber construction, this hose handles a working pressure of 5,000 psi and is rated for a maximum working pressure of 20,000 psi at burst. The 0.375 inch inner diameter and 0.68 inch outer diameter make it a compact yet capable hose for tight-routing applications. Operating temperature range spans -40 degrees F to 212 degrees F, covering most hydraulic fluid service conditions. It is installed by hydraulic system technicians, mobile equipment mechanics, and industrial maintenance professionals.

This hose is suited for use in industrial machinery, mobile equipment, agricultural equipment, and construction machinery where compact hose routing and high-pressure performance are required. The 471TC series conforms to EN 857 TYPE 2SC, ISO 11237 TYPE 2SC, and SAE J1942 standards, making it appropriate for OEM builds and aftermarket service on equipment that demands conforming replacement hose assemblies. The black hose color and 65 mm minimum bend radius support clean, efficient routing in confined spaces.

Key Features

• 5,000 psi working pressure rating for high-demand hydraulic circuits
• Synthetic rubber construction for compatibility with common hydraulic fluids
• Operating range of -40 degrees F to 212 degrees F
• 65 mm minimum bend radius for routing in tight installations
• Meets EN 857 TYPE 2SC, ISO 11237 TYPE 2SC, and SAE J1942 standards
• -6 hose size with 3/8 inch ID and 0.68 inch OD

Compatibility

Designed as an OEM-style replacement or service hose for hydraulic systems requiring -6 size hose assemblies conforming to EN 857 TYPE 2SC, ISO 11237 TYPE 2SC, and SAE J1942 specifications.

Installation Notes

Hydraulic hose assembly and installation should be performed by a qualified hydraulic technician or industrial mechanic. Always depressurize and de-energize the hydraulic system fully before disconnecting or replacing hose assemblies. Use proper crimping equipment rated for the hose series and end fittings to ensure a leak-free assembly. Inspect the routing path to maintain the minimum bend radius and avoid contact with sharp edges, heat sources, or moving components.
