Parker 46F-8-4 Female Connector 46F 45 Flare (1/2 Inch) Replacement MPN

Product Description

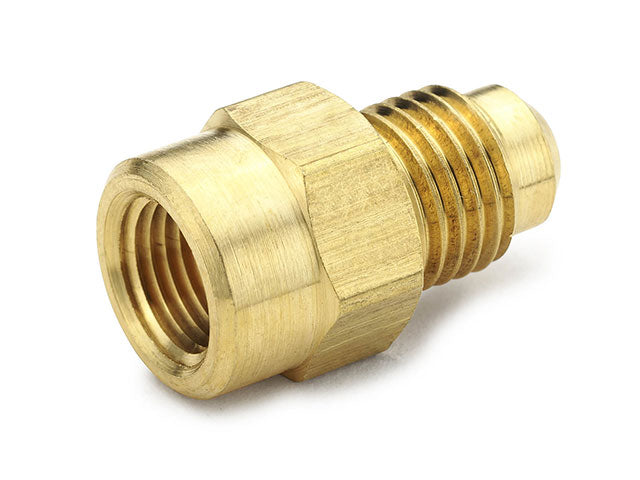

Parker 46F-8-4 is a brass female connector designed for use with copper, brass, aluminum, or steel tubing. This connector is compliant with SAE J512 and J513 standards. It is suitable for applications requiring a 45-degree flare connection.

• Compatible with various tubing materials
• Pressure rating of 750 PSI
• Operating temperature range of -65°F to +250°F

Product Highlights

This product provides reliable connections in fluid systems, ensuring durable performance in various conditions.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 46F-8-4

Technical Specifications

• Outer Diameter: 1/2 Inch
• Thread 1: 3/4-16 UN/UNF
• Thread 2: 1/4 NPT
• Material: Brass
• Series: 45 Flare
• Configuration Type: Flare to Female
• Configuration Sub-Type: Female Connector
• Operating Temperature: -65°F to +250°F
• Parker Division: Fluid Systems Connector
• Parker Group: Fluid Connector
• SAE Compliance: J512 and J513
• Pressure Rating: 750 PSI
