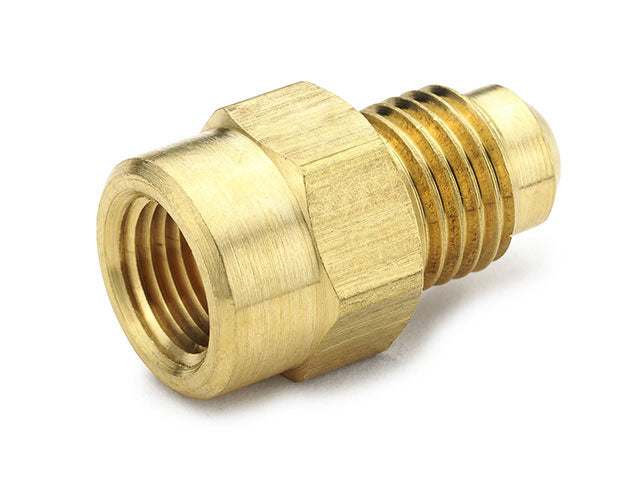

Parker 46F-6-4 Female Connector 45 Degree Flare 3/8 Inch

Product Description

The Parker 46F-6-4 is a female connector designed for use with 45 degree flare fittings. This connector meets the standards set by SAE J512 and J513, ensuring dependable performance in various applications. It works with copper, brass, aluminum, or steel tubing that can be flared to forty-five degrees.

• Compatible with multiple materials including copper, brass, and aluminum.
• Pressure rating of one thousand PSI for robust applications.
• Operating temperature range from negative sixty-five degrees Fahrenheit to two hundred fifty degrees Fahrenheit.

Product Highlights

This connector is ideal for fluid systems and meets all necessary compliance requirements for secure connections in HVAC and plumbing systems.

Product Information

Standard Information

• Manufacturer: Parker
• Minimum Order Quantity: 1

Technical Specifications

• Outer Diameter: 3/8 Inch
• Thread 1: 5/8-18 UN/UNF
• Thread 2: 1/4 NPT
• Material: Brass
• Configuration Type: Flare to Female
• Configuration Sub-Type: Female Connector
• Pressure Rating: 1000 PSI
• Operating Temperature: -65°F to +250°F
