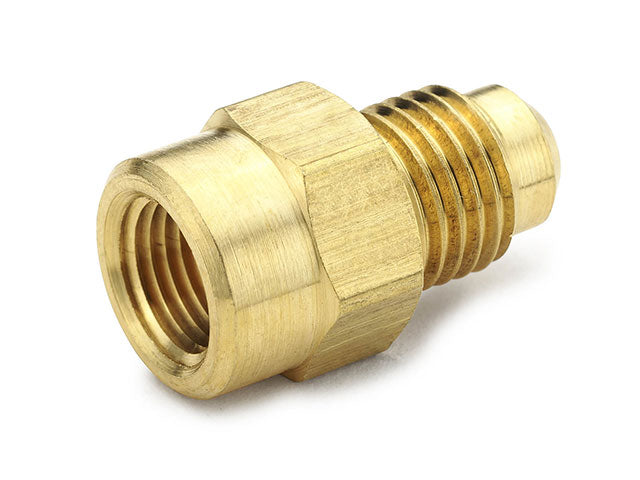

Parker 46F-5-4 Female Connector 46F 45 Degree Flare Brass Connector

Product Description

The Parker 46F-5-4 Female Connector is a brass fitting that conforms to the specifications of SAE J512 and J513. This connector is suitable for applications involving copper, brass, aluminum, or steel tubing that is flared to 45 degrees. The part offers reliable performance in fluid systems, designed for ease of installation and compatibility with a variety of assemblies.

• Brass construction for durability
• Operates effectively at temperatures from minus sixty-five degrees Fahrenheit to plus two hundred fifty degrees Fahrenheit
• Pressure rated for up to twelve hundred PSI

Product Highlights

The 46F-5-4 connector is ideal for both professional and DIY environments, ensuring a secure connection in various plumbing and HVAC systems.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 46F-5-4

Technical Specifications

• Outer Diameter: 5/16 Inch
• Thread 1: 1/2-20 UN/UNF
• Thread 2: 1/4 NPT
• Material: Brass
• Series: 45 Degree Flare
• Configuration Type: Flare to Female
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 1200 PSI
