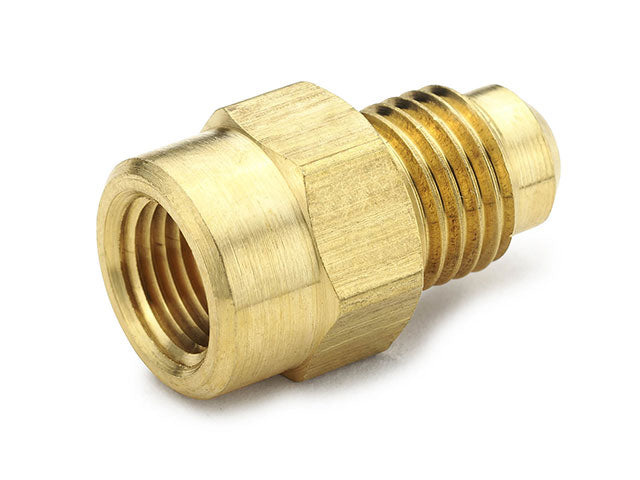

Parker 46F-4-6 Female Connector 46F 45 Degree Flare Brass Connector

Product Description

Parker 46F-4-6 is a female connector designed for use in fluid systems. This fitting meets the standards of SAE J512 and J513. It is suitable for applications involving copper, brass, aluminum, or steel tubing that can be flared at a forty-five degree angle.

• Meets SAE J512 and J513 standards
• Operating temperature range: minus sixty-five degrees Fahrenheit to plus two hundred fifty degrees Fahrenheit
• Pressure rating of up to fourteen hundred PSI

Product Highlights

This connector is versatile for various applications in fluid systems and complies with industry standards.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 46F-4-6

Technical Specifications

• Outer Diameter: 1/4 Inch
• Thread 1: 7/16-20 UN/UNF
• Thread 2: 3/8 NPT
• Material: Brass
• Configuration Type: Flare to Female
• Configuration Sub-Type: Female Connector
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 1400 PSI
