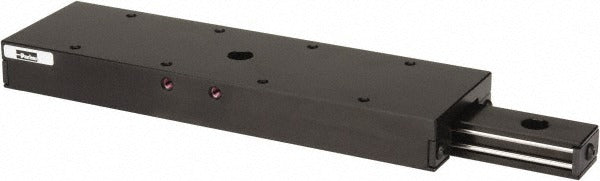

Parker 4606 Ball Bearing Slide Table 154 Lb 6 Inch Travel

Product Description

The PARKER 4606 is a single-axis ball bearing slide table designed for precision linear motion applications in industrial and automation settings. It delivers a load capacity of 154 pounds and 6 inches of travel, making it suitable for positioning fixtures, tooling, and workholding assemblies. The table measures 9 inches long by 2.62 inches wide by 1 inch high and weighs 2.3 pounds. Mounting is accomplished via 10-32 threaded holes arranged across 12 mounting points with a center-to-center spacing of 1 inch. Mechanical technicians and automation integrators are the primary installers of this component.

This slide table is used in single-axis linear positioning systems found in manufacturing, metrology, and light industrial automation environments. It is well suited for applications requiring repeatable travel with low friction, such as optical bench setups, inspection equipment, and small assembly fixtures. The ball bearing design supports smooth, consistent movement under rated load throughout the full 6-inch travel range. The compact footprint allows integration into space-constrained machine assemblies.

Key Features

• 154-pound load capacity supports substantial tooling and fixture weight
• 6-inch travel range for linear positioning tasks
• Ball bearing construction provides low-friction, repeatable motion
• 12 mounting holes with 10-32 thread size for versatile attachment options
• 1-inch center-to-center mounting hole spacing simplifies fixture alignment
• Compact profile at 9 inches long by 2.62 inches wide by 1 inch high

Compatibility

Designed as an OEM-style single-axis ball bearing slide table suitable for use in standard linear motion and positioning assemblies requiring 10-32 mounting hardware and up to 154 pounds of load capacity.

Installation Notes

Installation is typically performed by mechanical technicians or automation integrators familiar with linear motion components. Ensure the mating surface is flat and clean before mounting to avoid binding or misalignment across the travel range. Use appropriately rated 10-32 fasteners and do not exceed the rated 154-pound load capacity. Power down or de-energize any actuator or drive system connected to the slide before performing installation or adjustment work.
