Parker 43F-6-5 Brass Flare to Solder Fitting 3/8 in Od

Product Description

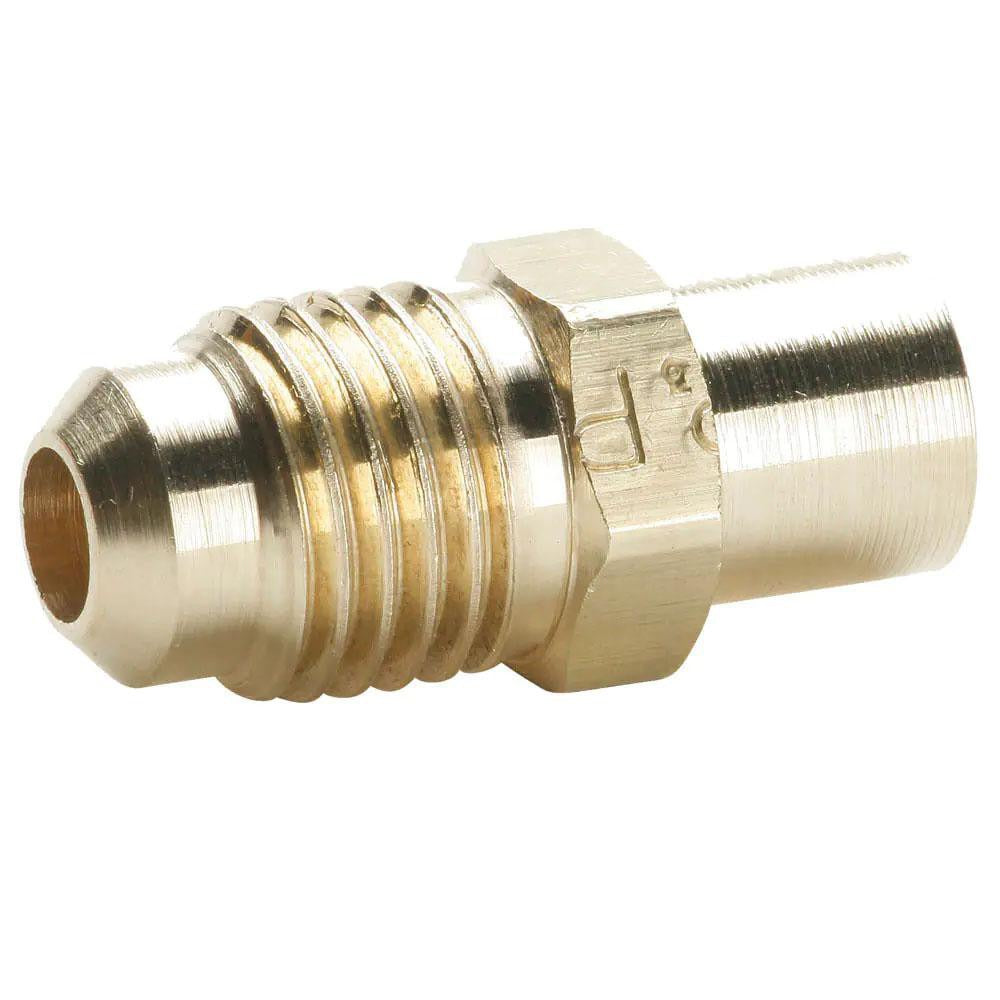

The PARKER 43F-6-5 is a brass flare-to-solder tube fitting designed for use in refrigeration, HVAC, and fluid-handling systems where a 45-degree SAE flare connection transitions to a solder joint. The fitting accepts a 3/8 inch tube OD on the flare end with a 5/8-18 UNF thread and terminates in a solder-cup end sized for a 5/16 inch reduced outside diameter. Rated to 1000 psi working pressure and 250 degrees F, it handles the demands of refrigerant lines, copper tubing runs, and similar pressure applications. HVAC technicians and plumbers install this fitting when connecting flared copper tubing to a soldered assembly or component.

This fitting is suited for residential and light commercial HVAC and refrigeration applications where SAE 45-degree flare connections interface with soldered copper piping. Typical install scenarios include refrigerant line sets, copper suction or liquid line transitions, and general fluid-system assemblies where mixed connection types are required. Its all-brass construction makes it compatible with copper tubing systems and resists corrosion in both indoor and mechanical-room environments.

Key Features

• 45-degree SAE flare end conforms to SAE J512 and SAE J513 standards
• 3/8 inch tube OD flare with 5/8-18 UNF thread for secure mechanical connection
• Solder-cup end with 5/16 inch reduced outside diameter for clean sweat joints
• Rated to 1000 psi maximum working pressure
• Rated to 250 degrees F maximum working temperature
• UL Listed; meets SAE J512, SAE J513 standards
• Compact overall length of 1.17 inches minimizes space requirements in tight installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 45-degree SAE flare systems using 3/8 inch OD copper tubing with a 5/8-18 UNF flare nut, transitioning to a solder-cup connection on copper pipe or fittings.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber following applicable mechanical codes. Evacuate and recover any refrigerant and isolate the system from pressure before disassembling flare connections. Ensure the flare nut is torqued to the fitting hand-tight before applying final wrench turns, and do not over-tighten the flare connection as brass fittings are susceptible to thread damage. The solder end must be fully cleaned and fluxed before applying heat; keep flame away from the threaded flare end during the sweat operation.
