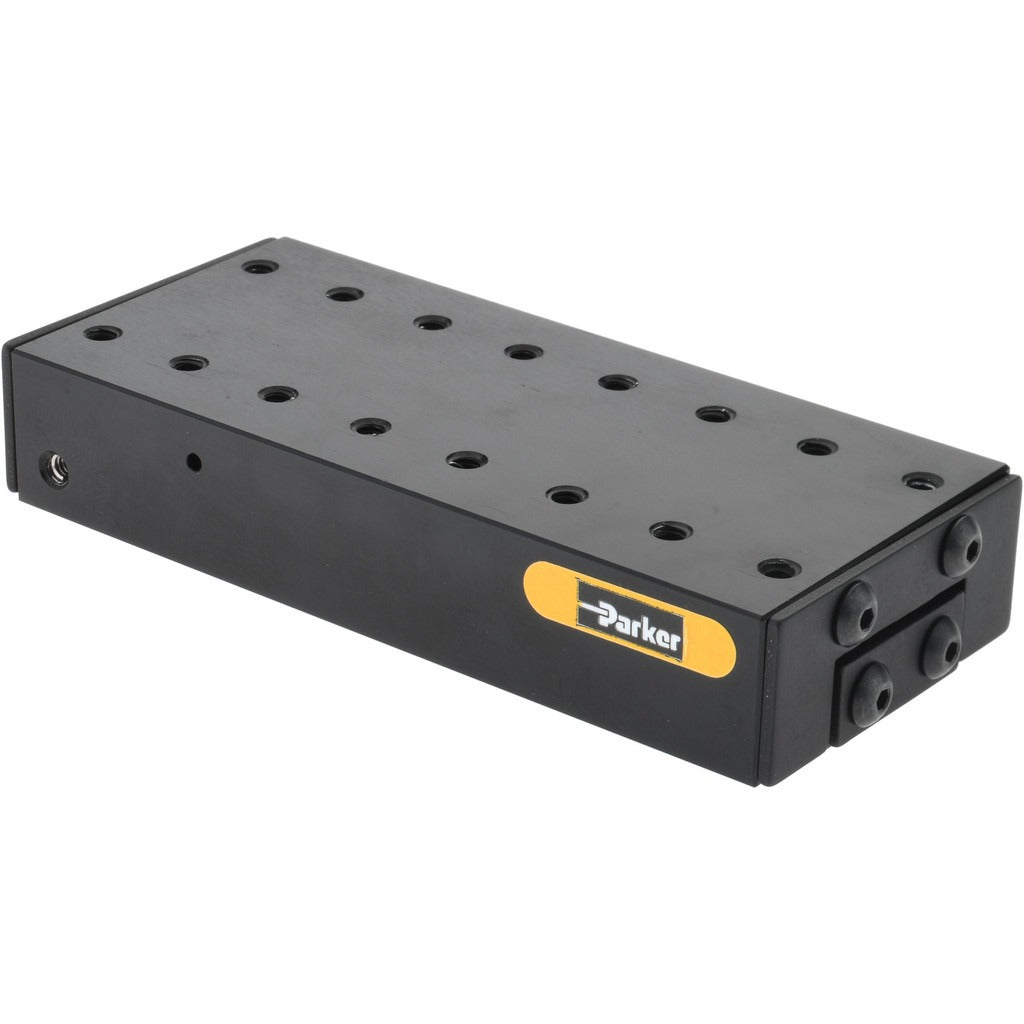

Parker 4301 Ball Bearing Slide Table 55 Lb 3 Inch Travel

Product Description

The PARKER 4301 is a single-axis ball bearing slide table designed for precision linear motion applications. With a 55-pound load capacity and 3 inches of travel, it provides smooth, repeatable movement for positioning tasks in light industrial and laboratory settings. The table measures 4 inches long by 1.75 inches wide by 0.75 inches high and mounts via six 6-32 threaded holes, making it straightforward to integrate into existing fixtures or custom assemblies. Mechanical technicians and automation technicians are the typical installers.

This slide table suits single-axis linear positioning applications where controlled travel and consistent load support are required. Its compact footprint makes it well suited for benchtop machinery, optical equipment mounts, test fixtures, and light automation rigs. The 6-32 mount hole pattern accommodates standard fasteners widely used in instrumentation and light mechanical assemblies. It ships as an individual unit with a minimum order quantity of one.

Key Features

• 55-pound load capacity for reliable support across a range of light industrial tasks
• 3-inch travel range on a single-axis configuration
• Ball bearing construction for smooth, low-friction linear motion
• Six 6-32 threaded mounting holes with 1-inch center-to-center spacing on the length axis
• Compact profile: 4 inches long, 1.75 inches wide, 0.75 inches high

Compatibility

Designed as an OEM-style replacement or direct-fit component for single-axis linear positioning assemblies requiring a 6-32 mount hole pattern and up to 3 inches of travel.

Installation Notes

Installation is typically performed by mechanical or automation technicians. De-energize and lock out any powered system before mounting or adjusting the slide table. Use 6-32 fasteners torqued to hand-tight plus a quarter turn unless the receiving assembly specifies otherwise in its documentation. Verify that the travel path is clear of obstructions before returning the assembly to service.
