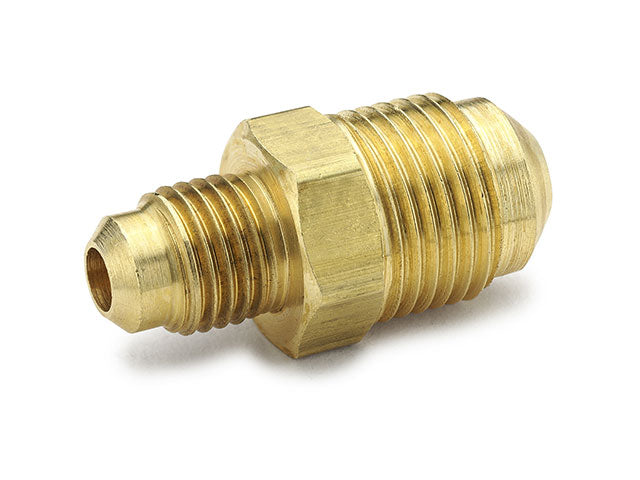

Parker 42F-10-6 Union Reducer 42F

Product Description

The Parker 42F-10-6 Union Reducer 42F is a reliable brass fitting designed for flaring applications. It meets the requirements of SAE J512 and J513 and is suitable for connections with copper, brass, aluminum, or steel tubing that can be flared to forty-five degrees.

• Constructed from durable brass.
• Compatible with various tubing materials.
• Pressure rated up to one thousand PSI.

Product Highlights

The Parker union reducer is ideal for hydraulic and pneumatic systems requiring high reliability. It provides secure connections with excellent performance.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 42F-10-6

Technical Specifications

• Outer Diameter 1: 3/8 Inch
• Outer Diameter 2: 5/8 Inch
• Thread 1: 7/8-14 UN/UNF
• Thread 2: 5/8-18 UN/UNF
• Material: Brass
• Series: 45° Flare
• Configuration Type: Flare to Flare
• Configuration Sub-Type: Union
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 1000 PSI
• SAE Compliance: J512 and J513
• SAE Reference: SAE 010101
