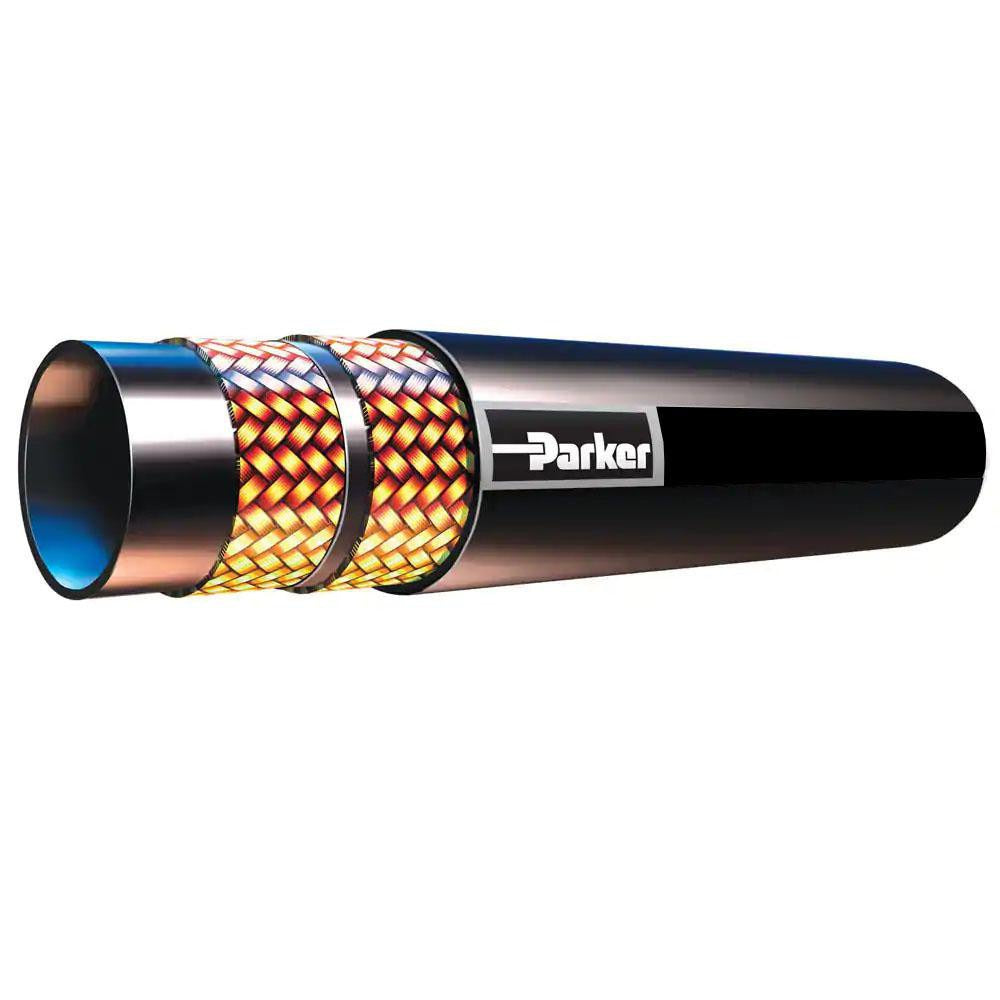

Parker 422-16-RL Hydraulic Hose 1 in Id 1275 Psi 125 Ft Coil

Product Description

The PARKER 422-16-RL is a single-wire braid hydraulic hose built for medium-pressure fluid power applications. Constructed with a synthetic rubber tube and cover, this -16 hose size carries a 1 inch inner diameter and is rated for a working pressure of 1,275 psi. It is sold in 1-foot increments with a 10-foot minimum cut length and ships in a 125-foot coil. The operating temperature range spans -40 degrees F to 212 degrees F, making it suitable for a broad range of hydraulic fluid and ambient conditions. Licensed hydraulic system technicians and fluid power specialists are the primary installers.

This hose is intended for medium-pressure hydraulic circuits in industrial, mobile, and agricultural equipment. Its synthetic rubber construction handles petroleum-based hydraulic fluids in typical shop and field environments. The 125-foot coil format is practical for shops that cut hose to length for multiple assemblies in a single job. It is well-suited for return lines, low-to-medium pressure supply lines, and general-purpose hydraulic routing where flexibility and a compact bend radius are required.

Key Features

• 1 inch inner diameter, -16 hose size designation
• 1,275 psi rated working pressure
• Synthetic rubber tube and cover construction
• Operating range: -40 degrees F to 212 degrees F
• Sold in 1-foot increments; 10-foot minimum cut length
• 125-foot total coil length per unit
• Meets EN 853 Type 1SN, ISO 1436-1 Type 1SN, SAE J517 100R1AT, and SAE J1942 standards

Compatibility

Designed for use in hydraulic systems requiring a -16 hose size with 1 inch inner diameter and a maximum working pressure of 1,275 psi, conforming to SAE J517 100R1AT and EN 853 Type 1SN specifications. Compatible fittings and adapters must match the -16 hose end designation per applicable SAE and EN standards.

Installation Notes

Hydraulic hose assembly and installation should be performed by a qualified fluid power technician or hydraulic system specialist. Depressurize and isolate the hydraulic circuit completely before cutting, routing, or connecting hose. Use proper hose cutting equipment to ensure a clean, square cut, and verify that all fittings and ferrules are rated for the same pressure class as this hose. Route hose away from sharp edges, high-heat sources, and moving components, following any applicable equipment OEM routing guidelines.
