Parker 41FL-5 Long Nut 45 Flare (1 EA) Replacement MPN

Product Description

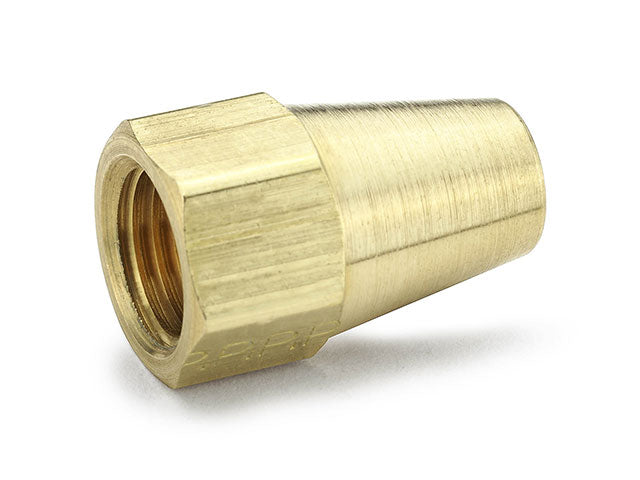

Parker 41FL-5 is a long nut designed for use with 45-degree flare fittings. This connector is made to meet the standards of SAE J512 and J513 and is tested by Underwriter's Laboratories. It is suitable for applications involving copper, brass, aluminum, or steel tubing that can be flared to 45 degrees.

• Use with various metal tubing types
• Complies with SAE standards J512 and J513
• Offers operational temperature range from -65 to +250 degrees Fahrenheit

Product Highlights

The Parker 41FL-5 enables secure connections across different fittings and tubing materials, making it suitable for a variety of plumbing and HVAC applications.

Product Information

Standard Information

• Brand: Parker
• Manufacturer Part Number: 41FL-5

Technical Specifications

• Outer Diameter: 5/16 Inch
• Thread Type: 1/2-20 UN/UNF
• Material: Brass
• Series: 45 Degree Flare
• Configuration Type: Auxiliary
• Configuration Sub-Type: Nut
• Pressure Rating: 1200 PSI
• Operating Temperature: -65 to +250 Fahrenheit
