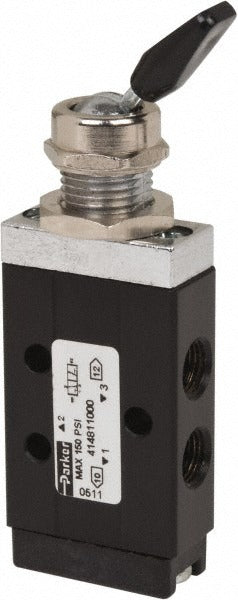

Parker 414811000 3-way 2-position Toggle Air Valve

Product Description

The PARKER 414811000 is a manually operated, mechanically actuated air directional control valve rated for 3-way, 2-position operation. It uses a toggle-spring return actuator, meaning the operator toggles the valve to shift position and a spring returns it to the default state when released. With a Cv rating of 0.2, this valve is suited for low-flow pneumatic control circuits. NPT threaded ports allow for straightforward inline installation in compressed air or pneumatic pilot lines. HVAC technicians, industrial maintenance technicians, and fluid power specialists are the typical installers for this class of valve.

This valve is designed for use in pneumatic control systems where a compact, manually actuated directional valve is required. Common applications include pneumatic actuator pilot circuits, small-bore compressed air lines, and process control panels in light industrial or commercial HVAC environments. The spring-return toggle action makes it well suited for applications that require a normally-default flow path with a momentary shift capability. The minimum working temperature of 32 degrees F should be considered when specifying for outdoor or unheated enclosure installations.

Key Features

• 3-way, 2-position valve design for directional pneumatic flow control
• Toggle-spring return actuator for manual operation with automatic reset
• Cv rating of 0.2 for low-flow compressed air and pneumatic pilot circuits
• NPT threaded ports for standard inline piping connections
• Minimum working temperature of 32 degrees F
• Compact, lightweight form factor at 0.45 pounds

Compatibility

Designed as an OEM-style directional control valve for low-flow pneumatic circuits using NPT-threaded fittings in light industrial and commercial HVAC control applications.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic systems and compressed air plumbing. Depressurize the pneumatic circuit and lock out the air supply before removing or installing any valve. NPT threads should be sealed with appropriate thread sealant tape rated for compressed air service. Verify the Cv rating and flow path configuration are compatible with the circuit requirements before commissioning.
