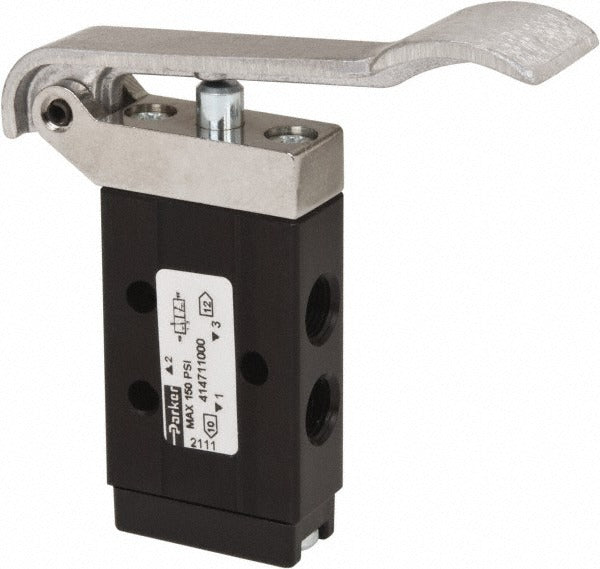

Parker 414711000 3-way 2-position Hand Lever Air Valve

Product Description

The PARKER 414711000 is a manually operated, 3-way 2-position air valve actuated by a hand lever with spring return. It is designed for pneumatic circuit control in industrial and mechanical systems where manual actuation and automatic spring-assisted return are required. The valve carries a Cv rating of 0.2 and uses NPT threading for inline installation. Licensed trades and industrial maintenance technicians install this valve where positive, operator-controlled airflow switching is needed without reliance on electrical actuation. The spring return feature ensures the valve reverts to its default position automatically when the lever is released.

This valve is suited for light-duty pneumatic applications in manufacturing, automation, and mechanical service environments. It handles directional control of compressed air flow in systems that require a manual override or a primary hand-operated switching point. With a minimum working temperature of 32 degrees F, it is appropriate for indoor and temperature-controlled enclosures. The compact form factor and NPT thread connection make it a straightforward fit in standard pneumatic plumbing configurations.

Key Features

• 3-way, 2-position valve configuration for directional pneumatic flow control
• Hand lever actuator with spring return for automatic position reset on release
• Cv rating of 0.2 for light-duty, low-flow pneumatic circuits
• NPT threaded connections for standard inline installation
• Minimum working temperature of 32 degrees F

Compatibility

Designed as an OEM-style replacement or direct-install manually operated air valve for standard NPT-ported pneumatic control systems requiring 3-way 2-position directional switching.

Installation Notes

Installation should be performed by a qualified industrial mechanic or pneumatic systems technician. Depressurize the pneumatic circuit fully before removing or installing any valve. Verify NPT thread compatibility and apply appropriate thread sealant per system requirements. Do not exceed the rated Cv or minimum temperature limits for the application.
