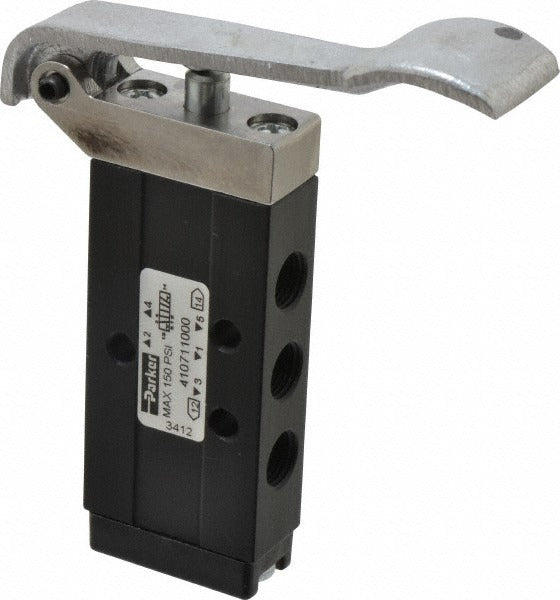

Parker 410711000 4-way 2-position Valve 1/8 Inch Npt

Product Description

The PARKER 410711000 is a 4-way, 2-position mechanically operated directional control valve designed for pneumatic circuit control in industrial and trade applications. It features a hand lever actuator with spring return, meaning the valve shifts when the lever is depressed and automatically returns to its default position when released. The inlet is 1/8 inch NPT, the Cv rating is 0.200, and the valve handles working pressures from 0 to 150 psi. This valve is typically installed by maintenance technicians, pipefitters, or pneumatic system specialists in compressed-air control circuits.

This valve is suited for light-duty pneumatic applications requiring manual directional control of air flow. The spring-return actuator makes it appropriate for momentary-actuation circuits where a default flow path must be maintained when the operator releases the lever. Common installation scenarios include small cylinder control, pneumatic tooling circuits, and automation panel assemblies operating within the rated temperature range of 32 to 175 degrees F.

Key Features

• 4-way, 2-position valve configuration with 5 ports for directional air flow control
• Hand lever actuator with spring return for momentary, self-resetting operation
• 1/8 inch NPT inlet for easy integration into standard compressed-air lines
• Cv rating of 0.200 suited for low-flow pneumatic circuits
• Operating pressure range of 0 to 150 psi covers typical shop-air applications
• Rated for temperatures from 32 to 175 degrees F for broad indoor industrial use

Compatibility

Designed as an OEM-style directional control valve for pneumatic systems requiring a 4-way, 2-position hand lever spring-return valve with 1/8 inch NPT porting.

Installation Notes

Installation should be performed by a qualified pneumatic technician or pipefitter. Depressurize and lock out the compressed-air supply before removing any existing valve or fittings. Ensure all NPT threaded connections are sealed with an appropriate thread sealant rated for pneumatic service and torqued to fitting-manufacturer specifications. Verify system operating pressure and temperature do not exceed the rated limits of this valve before returning the circuit to service.
