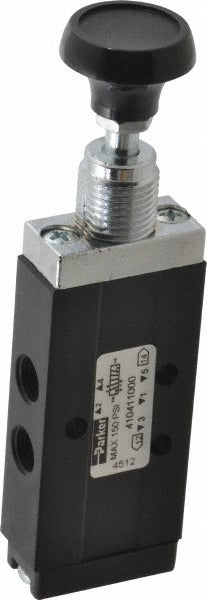

Parker 410411000 4-way 2-position Valve 1/8 Inch Npt

Product Description

The PARKER 410411000 is a 4-way, 2-position mechanically operated directional control valve with a button-spring return actuator. It controls airflow or compatible fluid flow in pneumatic circuits by shifting between two positions when the button is depressed and returning to its original state via spring force when released. The valve features a 1/8 inch NPT inlet, a Cv rating of 0.200, and a maximum working pressure of 150 psi. With five ports and a compact inline form factor, it is suited for integration into automated machinery, pneumatic control panels, and similar industrial or mechanical systems. Licensed pneumatic or mechanical technicians typically handle installation and commissioning.

This valve is designed for pneumatic directional control applications operating within a pressure range of 0 to 150 psi and a temperature range of 32 degrees F to 175 degrees F. It fits installations where manual or mechanically triggered actuation is required, such as cylinder sequencing, tool actuation, or machine guarding circuits. The 1/8 inch NPT thread type allows straightforward integration with standard pneumatic manifolds, tubing, or fittings commonly found in light industrial and trade environments.

Key Features

• 4-way, 2-position valve configuration with five ports for flexible pneumatic circuit routing
• Button-spring return actuator provides reliable manual triggering with automatic reset
• 1/8 inch NPT inlet thread for compatibility with standard pneumatic fittings
• Cv rating of 0.200 suited for low-flow precision pneumatic circuits
• Operating pressure range of 0 to 150 psi covers typical light industrial pneumatic systems
• Temperature range of 32 degrees F to 175 degrees F supports a wide range of service environments

Compatibility

Designed as an OEM-style directional control valve for pneumatic systems requiring a 4-way, 2-position mechanically actuated valve with a 1/8 inch NPT port connection.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician familiar with directional control valve circuits. Depressurize and lock out the pneumatic system before removing or installing any valve components. Ensure all NPT threads are sealed with compatible thread sealant and that port connections are torqued per the fitting manufacturer's guidance. Verify that system pressure and temperature do not exceed the rated limits of 150 psi and 175 degrees F before returning the system to service.
