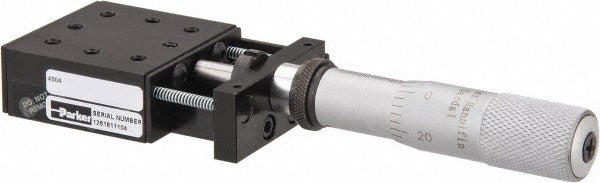

Parker 4004 Precision Ball Bearing Table 25 Lb 1 in Travel

Product Description

The PARKER 4004 is a single-axis precision ball bearing positioning table designed for applications requiring smooth, repeatable linear motion under moderate load. It features a center drive configuration and supports up to 25 pounds of load capacity across 1 inch of travel. The table measures 1-3/4 inches long by 1-3/4 inches wide by 3/4 inches high and mounts via eight 6-32 threaded holes with a center-to-center mounting hole length of 1 inch. Technicians and engineers working with motion control assemblies, test fixtures, and precision automation equipment install this component as part of a larger linear or multi-axis system.

This table is suited for light-duty single-axis positioning tasks in laboratory, industrial automation, and precision fixture applications. Its compact footprint makes it a practical choice where space is limited but positional accuracy is required. The 6-32 mount hole pattern aligns with standard small-frame hardware, allowing straightforward integration into existing assemblies. It is typically installed by automation technicians or mechanical engineers working on motion control systems that demand consistent, low-friction linear movement.

Key Features

• 25 pound load capacity for moderate-duty single-axis positioning
• 1 inch of linear travel with precision ball bearing construction
• Center drive configuration for balanced load transmission
• Eight 6-32 mounting holes with 1 inch center-to-center spacing
• Compact body: 1-3/4 inches long by 1-3/4 inches wide by 3/4 inches high

Compatibility

Designed as an OEM-style replacement or direct-fit component for single-axis precision ball bearing table assemblies requiring a 6-32 mount hole pattern and center drive configuration.

Installation Notes

Installation is typically performed by automation technicians or mechanical engineers. Ensure the mounting surface is flat and all fasteners are driven into properly threaded 6-32 holes to avoid binding or misalignment. Disconnect and de-energize any associated drive or actuator components before servicing or repositioning the table. Do not exceed the rated 25 pound load capacity, as overloading can compromise bearing integrity and positional accuracy.
