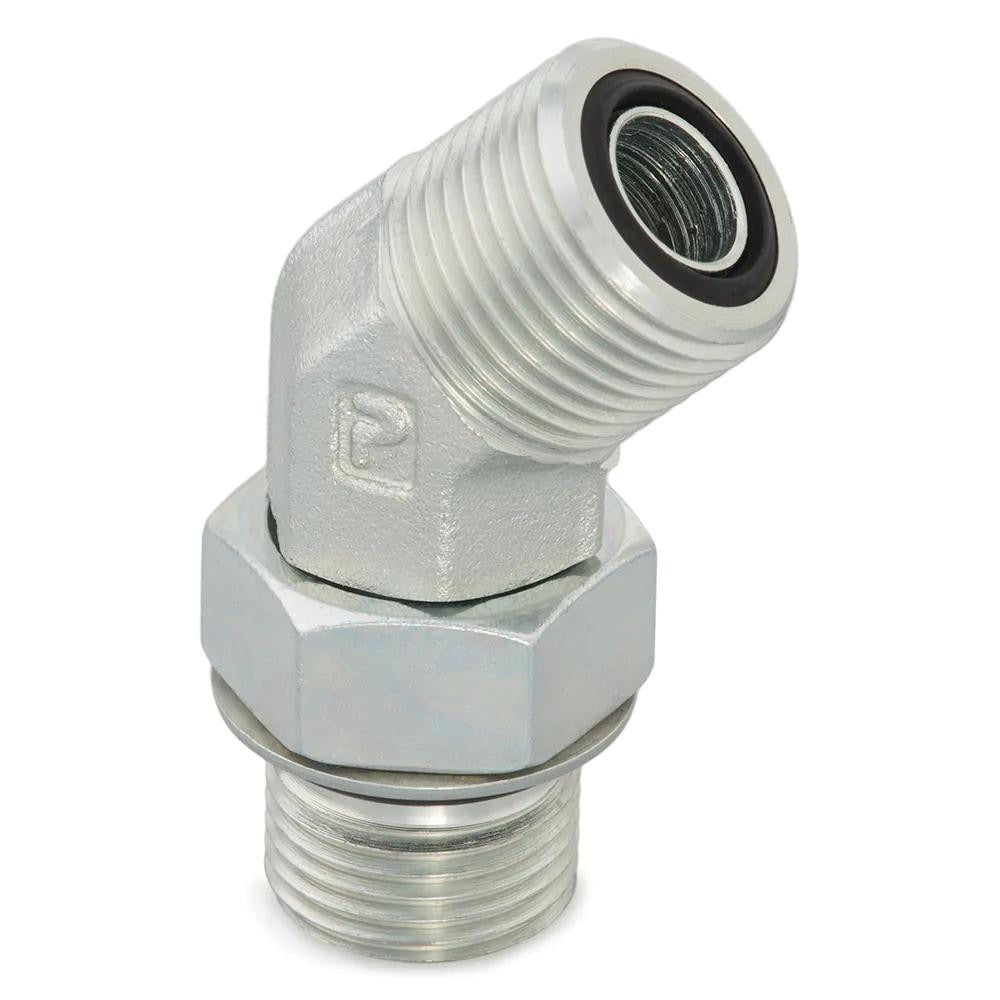

Parker 4 V5OLO-S Male 45 Elbow Fitting 1/4 in Od 6000 Psi

Product Description

The PARKER 4 V5OLO-S is a compression tube male 45-degree elbow fitting designed for hydraulic and fluid power line connections. It joins a 1/4-inch outside diameter tube to a port using an O-Ring Face Seal (ORFS) connection on one end and an SAE O-Ring Boss (SAE-ORB) thread on the other. Constructed from zinc-plated steel, it is rated for a maximum working pressure of 6000 psi. This fitting is installed by hydraulic technicians and fluid power specialists in high-pressure plumbing systems where a 45-degree directional change is required between tube and port connections.

This fitting is suited for use in industrial hydraulic systems, mobile equipment plumbing, and high-pressure fluid circuits requiring a reliable 45-degree elbow transition. The ORFS x SAE-ORB end configuration makes it appropriate for connecting steel tubing to manifolds, valve bodies, pumps, and cylinders that use SAE-ORB ports. Its compact form factor and high-pressure rating make it a practical choice for tight routing applications in both stationary and mobile machinery.

Key Features

• 45-degree male elbow configuration for directional routing of hydraulic lines
• ORFS x SAE-ORB end connections for leak-resistant face seal and port fitment
• Rated to 6000 psi maximum working pressure for demanding hydraulic service
• Zinc-plated steel construction provides corrosion resistance in typical service environments
• 7/16-20 UNF thread size for precise fitment to compatible SAE-ORB ports
• 1/4-inch tube outside diameter compatibility for standard small-bore hydraulic tubing

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic systems using 1/4-inch OD tubing with ORFS tube connections mating to 7/16-20 UNF SAE-ORB port threads.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect O-rings for damage before assembly and ensure mating port surfaces are clean and free of burrs. Follow applicable industry standards such as SAE J1453 for ORFS fittings to ensure proper torque and seal integrity.
