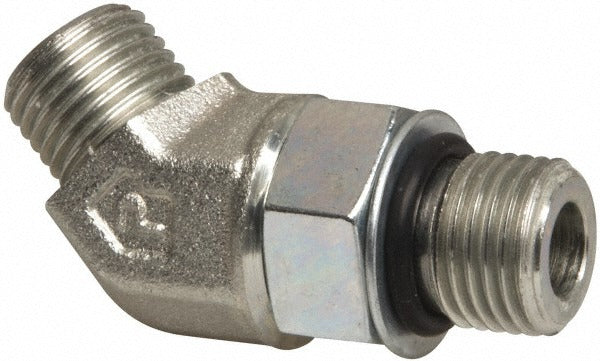

Parker 4-6 V5OLO-S Male 45 Elbow Fitting 6000 Psi Orfs Sae-orb

Product Description

The PARKER 4-6 V5OLO-S is a compression tube male 45-degree elbow fitting designed for hydraulic and fluid transfer systems that require a reliable, leak-resistant connection. Constructed from zinc-plated steel, this fitting joins a 1/4-inch outside diameter tube on one end to a male O-Ring Face Seal (ORFS) connection, transitioning to an SAE straight thread O-ring boss (SAE-ORB) port on the other. It carries a maximum working pressure rating of 6000 psi, making it suitable for high-pressure hydraulic lines. Licensed plumbers, hydraulic technicians, and industrial piping professionals install this type of fitting in demanding service environments.

This fitting is commonly used in mobile hydraulic systems, industrial machinery, and fluid power circuits where a 45-degree directional change is needed at a tube-to-port junction. The ORFS-to-SAE-ORB end configuration is a standard pairing in hydraulic manifold, valve, and pump port connections. It is appropriate for both OEM assembly and field repair applications across a range of hydraulic equipment operating at elevated pressures.

Key Features

• 45-degree male elbow configuration allows directional routing of hydraulic tubing with a compact bend
• Zinc-plated steel construction provides corrosion resistance in typical hydraulic service environments
• Rated to 6000 psi maximum working pressure for high-pressure hydraulic circuits
• ORFS x SAE-ORB end connections deliver positive, leak-resistant sealing at both interfaces
• 1/4-inch tube outside diameter and 9/16-18 UNF thread sizing conform to industry-standard dimensions
• Sold individually, suitable for single-unit replacement or OEM assembly use

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic systems using 1/4-inch OD tubing with ORFS and SAE-ORB port connections rated up to 6000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter familiar with high-pressure fluid systems. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Inspect O-rings for damage before assembly and replace if worn. Apply thread sealant or use the integral O-ring seal as appropriate to the port type, and follow the equipment manufacturer's assembly procedures for torque and seating requirements.
