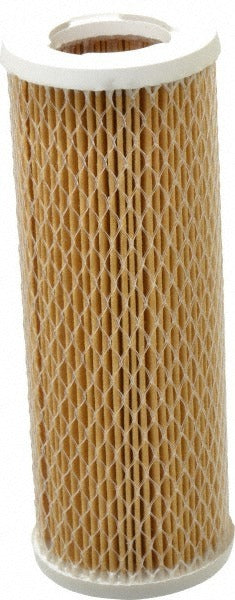

Parker 3PU15-060 Filter Element 3 Micron Finite H-series

Product Description

The PARKER 3PU15-060 is a cellulose replacement filter element rated at 3 microns, designed for use in compressed air filtration systems. Measuring 1.5 inches in height and 6 inches in width, this element installs into Parker Finite H-Series filter housings to remove particulate contamination from compressed air lines. It handles airflow in the range of 133 to 166 standard cubic feet per minute (SCFM), making it appropriate for light industrial and commercial pneumatic systems. Compressed air technicians and industrial maintenance personnel are the primary installers. The cellulose media provides reliable mechanical filtration at the 3-micron level, protecting downstream equipment such as pneumatic tools, actuators, and process instrumentation from particulate damage.

This filter element is used in compressed air filtration applications where particulate removal at 3 microns is required. Typical installation scenarios include point-of-use filtration stations, compressor room air preparation assemblies, and inline filtration before pneumatic control equipment. The element is sized and rated specifically for Parker Finite H-Series filter housings and is suited for both light commercial and industrial compressed air systems operating within the 133 to 166 SCFM flow range.

Key Features

• 3-micron cellulose filter media for reliable particulate removal from compressed air
• Airflow capacity rated from 133 to 166 SCFM
• Compact dimensions of 1.5 inches height by 6 inches width for straightforward element swap
• Direct replacement element designed for Parker Finite H-Series filter housings
• Sold individually, allowing single-unit replacement as part of scheduled maintenance

Compatibility

Designed as a direct replacement filter element for Parker Finite H-Series compressed air filter housings.

Installation Notes

Filter element replacement should be performed by a qualified technician familiar with compressed air system maintenance. Before servicing, depressurize the filter housing completely and isolate it from the upstream air supply. Follow the housing manufacturer's instructions for element removal and installation to ensure a proper seal. Replacement intervals should be based on pressure differential readings across the filter or as specified in the system maintenance schedule.
