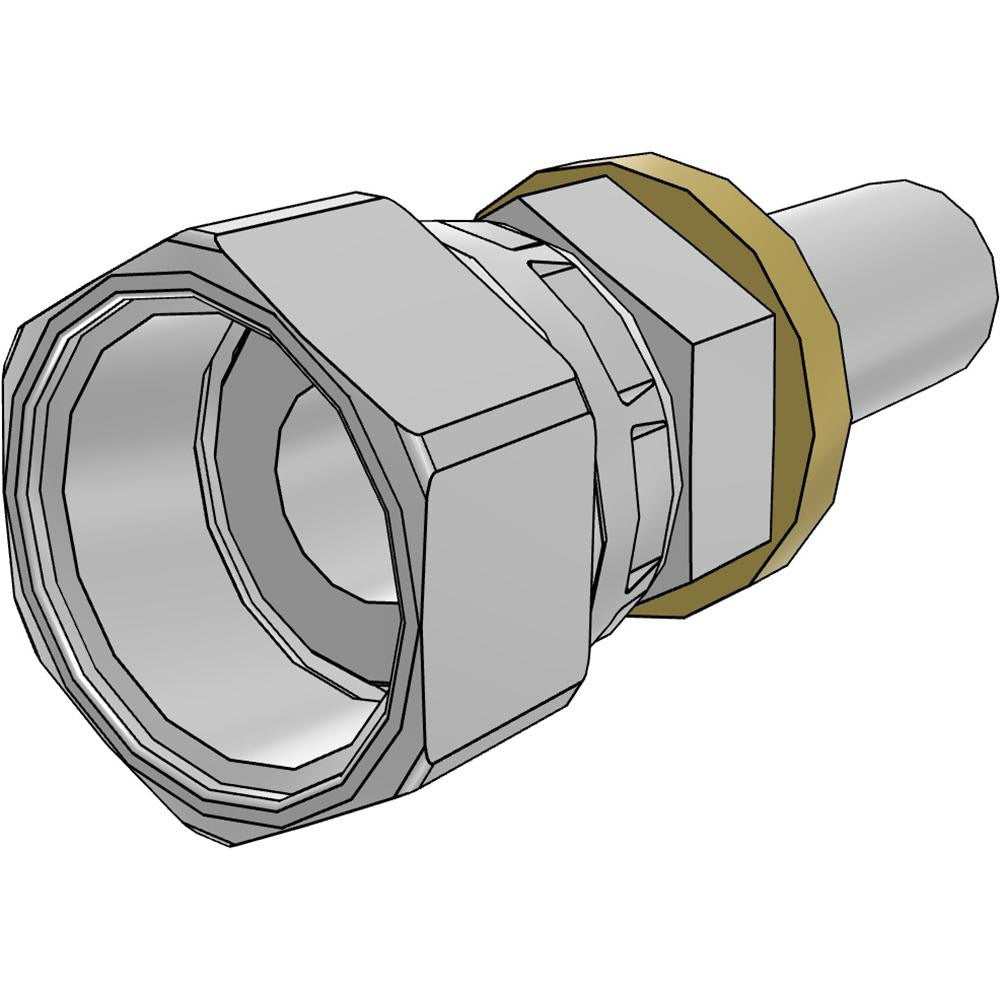

Parker 3JC82-10-10 Female Seal-lok Swivel Short Fitting

Product Description

The PARKER 3JC82-10-10 is a female Seal-Lok swivel short hydraulic hose fitting designed for high-pressure fluid power connections in hydraulic systems. Constructed from steel, this fitting accepts a 10 mm hose size and features a 1-14 inch thread size conforming to SAE standards. The swivel design allows the hose to be positioned and torqued without twisting the hose body, reducing installation stress and potential leak points. This fitting is commonly installed by hydraulic technicians and millwrights servicing mobile, industrial, and stationary hydraulic equipment. The body diameter measures 5/8 inches, keeping the overall profile compact for tight installation environments.

This fitting is suited for hydraulic hose assemblies operating in applications where a leak-free, face-seal connection is required. The Seal-Lok face-seal design eliminates thread-based leak paths by sealing on the face of the fitting rather than relying on tapered threads. It is appropriate for use in mobile equipment, manufacturing machinery, agricultural equipment, and construction hydraulics where reliable hose termination is critical. The SAE-compliant geometry ensures interoperability within standardized hydraulic circuit designs.

Key Features

• Female Seal-Lok face-seal design eliminates thread-leak paths common with pipe-thread fittings
• Swivel short configuration allows hose routing adjustment without twisting the hose
• Steel construction provides strength and durability for high-pressure hydraulic service
• SAE-standard geometry for compatibility with standardized hydraulic hose assemblies
• 10 mm hose size with 1-14 inch thread and 5/8 inch body diameter

Compatibility

Designed as an OEM-style replacement or new-assembly fitting for SAE-standard 10 mm hydraulic hose assemblies using face-seal Seal-Lok swivel short configurations.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with SAE face-seal fitting procedures. Depressurize and fully isolate the hydraulic circuit before disassembly or fitting installation. Inspect the sealing face and O-ring seat for damage or contamination before assembly, and replace the O-ring if any deformation is present. Follow the hydraulic equipment manufacturer's torque specifications and applicable industry standards for face-seal fitting assembly.
