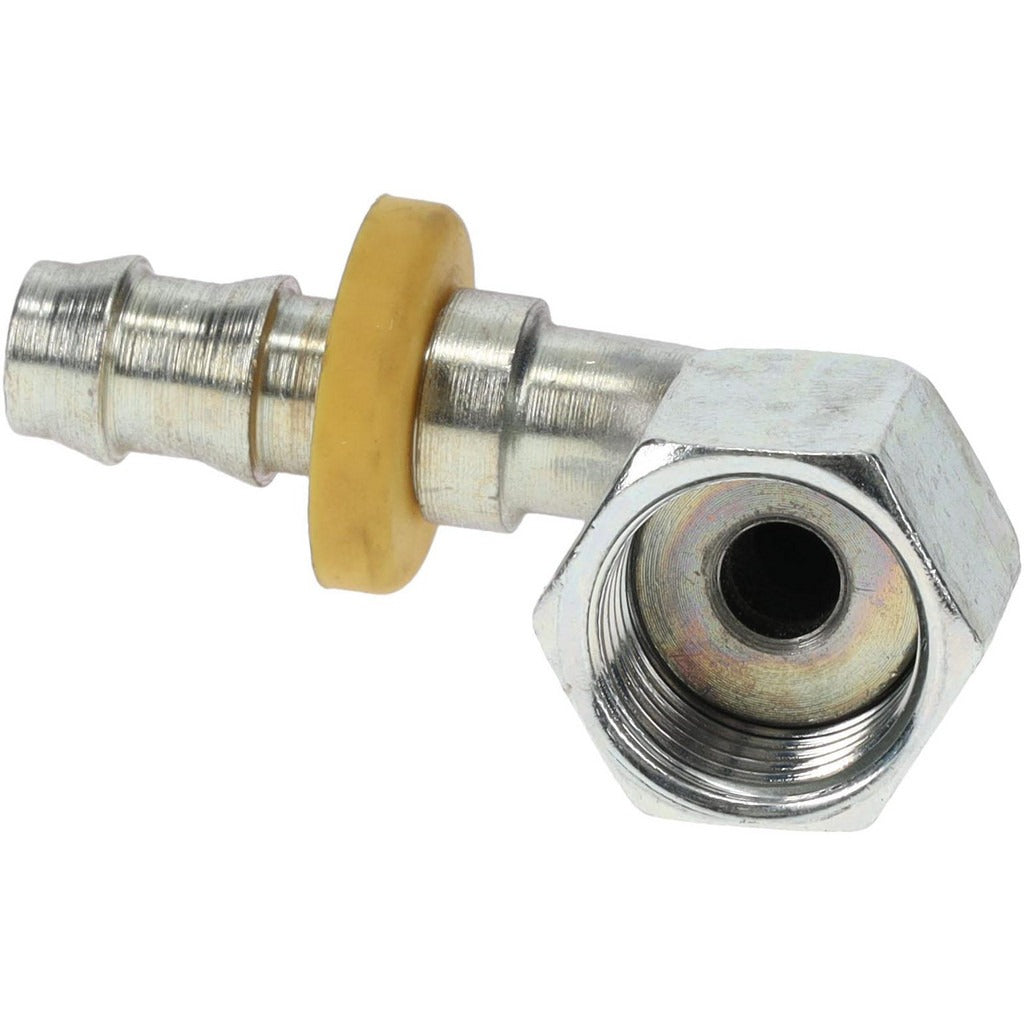

Parker 3J982-6-6 Seal-lok Swivel 90 Elbow Fitting Size 6

Product Description

The PARKER 3J982-6-6 is a female Seal-Lok swivel 90-degree elbow hose fitting designed for hydraulic systems requiring a right-angle connection at the hose end. Constructed from steel, this Series 82 fitting features an 11/16-16 threaded connection and accepts hoses with a 0.375 inch (9.50 mm) inside diameter. The swivel design allows the hose to be oriented correctly during assembly without twisting the hose body. It is intended for installation by hydraulic technicians and fluid power specialists working on mobile or industrial hydraulic circuits.

This fitting is suited for use in mobile equipment, industrial machinery, and other hydraulic systems where a 90-degree hose-to-port transition is required. The Seal-Lok face-seal connection style minimizes leak paths compared to tapered thread designs, making it appropriate for higher-pressure or leak-sensitive applications. Compatible hose types are listed below in the compatibility section. The fitting conforms to SAE shaft-type standards and carries an ISO 12151-1-SWES90 rating.

Key Features

• 90-degree swivel elbow allows hose routing without twisting the hose assembly
• Female Seal-Lok face-seal connection reduces leak potential at the port interface
• Steel construction for durability in hydraulic service environments
• Hose inside diameter: 0.375 inches (9.50 mm), Hose Size 6
• Thread size: 11/16-16 SAE straight thread
• Meets ISO 12151-1-SWES90 standard; California PROP 65 noted

Compatibility

Designed for use with Parker 801, 804, 821, 821FR, and 836 hoses in Size 6 (0.375 inch ID) configurations.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the face-seal surface and O-ring for damage before assembly, and ensure threads are clean and free of debris. Torque to the fitting manufacturer or system designer specifications — do not use thread sealant tape on Seal-Lok straight-thread connections.
