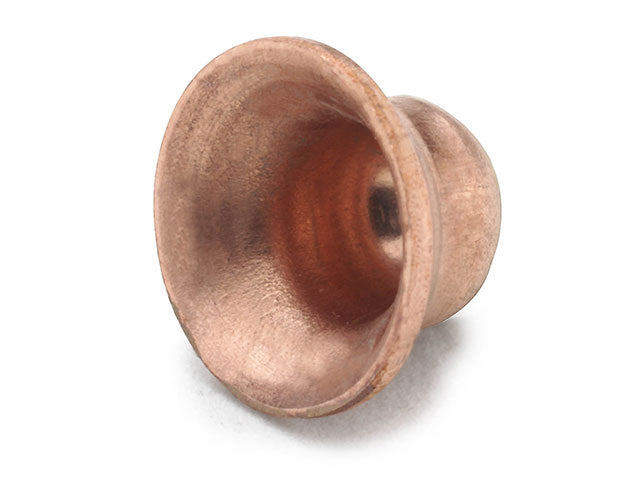

Parker 3GF-10 Seal Bonnet 3GF 45 Degree Flare Fitting

Product Description

The Parker 3GF-10 is a 45-degree flare fitting designed for use with copper, brass, aluminum, or steel tubing that can be flared to 45 degrees. This fitting complies with SAE J512 and J513 standards and is listed with Underwriter's Laboratories. It offers reliable connections in fluid systems.

• Compatible with various metal tubing materials
• Includes seal bonnet configuration
• Meets SAE standards for safety and performance

Product Highlights

This product allows for secure connections in plumbing and industrial applications. The brass construction provides durability.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker

Technical Specifications

• Outer Diameter: 5/8 Inch
• Material: Brass
• UOM: EA
• Series: 45 Degree Flare
• Configuration Type: Auxiliary
• Configuration Sub-Type: Seal Bonnet
• Operating Temperature: -65 to +250 Degrees Fahrenheit
• Parker Division: Fluid Systems Connector (Brass Products)
• Parker Group: Fluid Connector
• SAE Compliance: J512 and J513
• SAE Reference: SAE 010114
