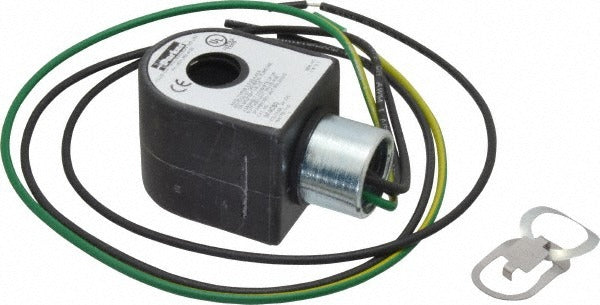

Parker 3F4C80 Solenoid Coil 24V Class F Nema 4X 11.5W

Product Description

The PARKER 3F4C80 is a 24 VDC solenoid coil designed for use with Parker Skinner Gold Ring Series valves. Rated at 11.5 watts and built to Class F insulation standards, this coil delivers reliable electromagnetic actuation in demanding fluid control applications. The NEMA 4X enclosure rating means it is watertight and corrosion-resistant, making it suitable for wet or wash-down environments. With an 18-inch coil lead length, there is adequate wire reach for most panel and field installations. Licensed technicians and industrial service professionals typically install this coil as a direct replacement or new installation on compatible solenoid valve bodies.

This coil is used in fluid control systems where a 24 VDC signal is required to actuate a solenoid valve. The NEMA 4X rating makes it well suited for outdoor installations, process environments with moisture exposure, and applications that require watertight electrical protection. It is specified for Parker Skinner Gold Ring Series valves and is commonly found in HVAC, plumbing, industrial process, and pool and irrigation control applications where precise, electrically actuated flow control is needed.

Key Features

• 24 VDC operating voltage for compatibility with standard low-voltage control circuits
• Class F insulation rating for higher thermal tolerance in continuous-duty applications
• NEMA 4X enclosure provides watertight and corrosion-resistant protection
• 11.5 watt power consumption for consistent coil actuation
• 18-inch lead length allows flexible wiring reach in field installations
• Designed for use with Parker Skinner Gold Ring Series solenoid valves

Compatibility

Designed for use with Parker Skinner Gold Ring Series solenoid valves. Confirm valve body coil interface and voltage requirements before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with low-voltage electrical and fluid control systems. De-energize the circuit and shut off system pressure before removing or installing the coil. Ensure the coil voltage matches the control circuit supply before energizing. Refer to Parker Skinner valve documentation for proper coil seating and lead termination procedures.
