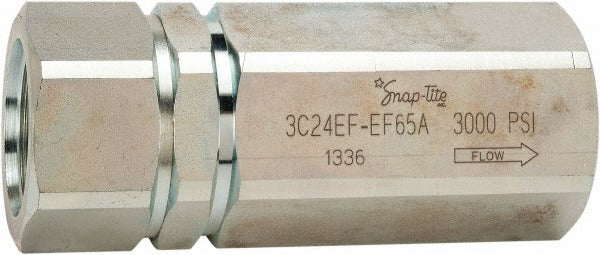

Parker 3C24F-F65 Hydraulic Check Valve 125 Gpm 3000 Psi

Product Description

The PARKER 3C24F-F65 is a hydraulic control check valve designed to allow flow in one direction while preventing backflow in hydraulic fluid circuits. Built with a steel body and fluorocarbon seals, it handles demanding industrial and mobile hydraulic applications where pressure integrity and leak-free performance are critical. The valve is rated for a maximum working pressure of 3000 psi and a maximum flow rate of 125 GPM. The 1-1/2-11-1/2 female NPTF inlet provides a pressure-energized thread connection that resists leakage without sealant. Licensed hydraulic technicians and fluid power specialists are the typical installers for this component.

This check valve fits into hydraulic power units, mobile equipment, and industrial machinery where directional flow control is required. It is suited for circuits that demand reliable backflow prevention under high-pressure conditions, including press systems, lift circuits, and clamping circuits. The compact overall dimensions — 6.5 inches in length, 2.5 inches in width, and 2.5 inches in height — make it practical for installations with limited envelope space. Applications span both stationary industrial hydraulic systems and mobile equipment platforms.

Key Features

• Maximum working pressure of 3000 psi for high-demand hydraulic circuits
• Maximum flow rate of 125 GPM to support large-bore cylinder and motor circuits
• 1-1/2-11-1/2 female NPTF thread inlet for leak-resistant pressure-energized connections
• Steel body construction for durability in heavy-duty hydraulic environments
• Fluorocarbon seals provide compatibility with a wide range of hydraulic fluids and operating temperatures
• Compact envelope at 6.5 x 2.5 x 2.5 inches supports tight installation layouts

Compatibility

Designed as an OEM-style replacement or new-installation check valve for hydraulic systems using 1-1/2-inch NPTF female threaded connections rated to 3000 psi working pressure.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and lock out the hydraulic circuit completely before removing any existing valve or fitting. Verify that the NPTF thread engagement is correct and that the flow direction arrow on the valve body aligns with intended circuit flow before torquing connections. Do not exceed the rated working pressure of 3000 psi in the installed circuit.
