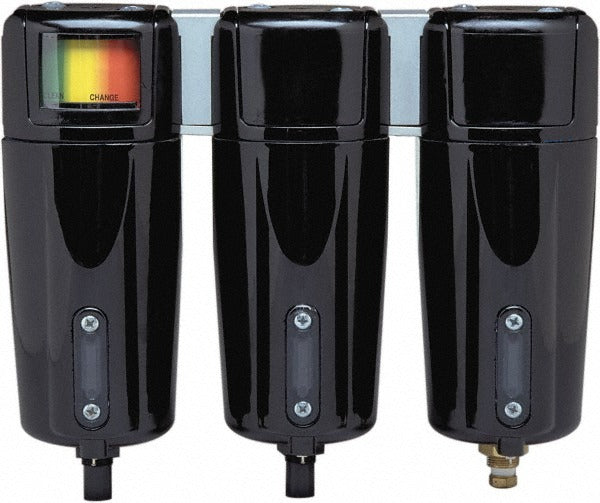

Parker 3B-8206N-3A1 Oil Water Filter Separator 70 Cfm

Product Description

The PARKER 3B-8206N-3A1 is a compressed air oil-water filter and separator designed for industrial and commercial pneumatic systems. It removes dust, oil aerosols, particulate, and liquid water from compressed air lines, protecting downstream equipment and keeping air quality within acceptable limits. The unit handles up to 70 CFM at a maximum working pressure of 250 psi and includes an automatic drain that clears collected condensate without manual intervention. Connections are 3/4 inch NPT for straightforward integration into existing piping. Licensed mechanical or pipefitting contractors typically handle installation in production facilities, compressor rooms, and trade applications.

This separator is suited for light industrial, commercial, and heavy trade environments where compressed air systems generate significant condensate and contamination. Typical install locations include compressor discharge lines, air headers, and point-of-use drops ahead of pneumatic tools, controls, or spray equipment. The auto drain function makes it a practical choice in locations where manual servicing is infrequent. The unit handles air contaminated with dust, oil carryover, and water, covering the most common compressed air contamination categories in a single housing.

Key Features

• 70 CFM flow capacity supports high-demand pneumatic systems
• 250 psi maximum working pressure for robust compressed air service
• Automatic drain eliminates manual condensate removal
• 3/4 inch NPT end connections for standard pipe fitment
• Removes dust, oil aerosols, particulate, and liquid water in a single stage
• Rated to 130 degrees F maximum operating temperature

Compatibility

Designed as an OEM-style replacement or new-installation filter-separator for compressed air systems requiring 3/4 inch NPT connections and flow rates up to 70 CFM at pressures up to 250 psi.

Installation Notes

Installation should be performed by a qualified pipefitter or mechanical contractor familiar with compressed air system codes and practices. Depressurize and lock out the compressed air supply completely before installing or servicing the unit. Mount the separator in the correct flow orientation as indicated on the housing, and verify all NPT threaded connections are properly sealed with thread sealant rated for compressed air service. Do not exceed the rated working pressure or temperature limits during operation.
