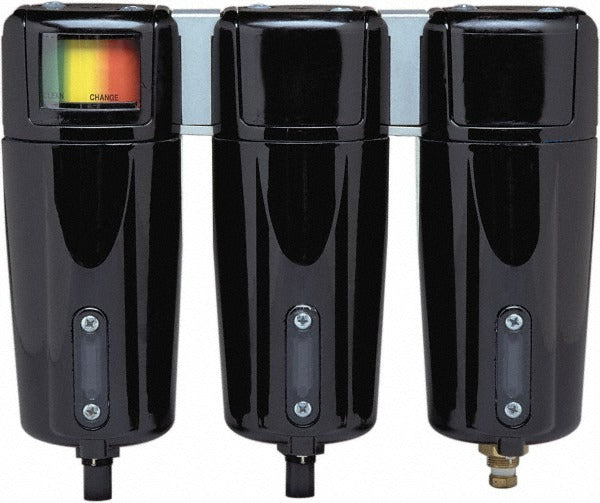

Parker 3B-8002N-3A1 Oil Water Filter Separator 25 Cfm

Product Description

The PARKER 3B-8002N-3A1 is a compressed air oil water filter and separator designed to remove dust, oil, particulate, and water contamination from compressed air systems. It features NPT end connections and an automatic drain, eliminating the need for manual condensate removal. Rated at 25 CFM with a maximum working pressure of 250 psi and a maximum operating temperature of 130 degrees F, this unit is built for continuous-duty industrial and commercial compressed air applications. At 6 pounds, it is compact enough for inline installation in most shop or facility air distribution systems.

This filter separator is suited for light industrial, commercial, and trade shop environments where compressed air quality directly affects tool performance, equipment longevity, and process cleanliness. Typical installation scenarios include inline placement on compressor outlet lines, at point-of-use drops, or ahead of sensitive pneumatic controls and instrumentation. The auto drain function makes it well suited for installations where regular manual servicing is impractical.

Key Features

• Automatic drain eliminates manual condensate removal and reduces maintenance intervals
• 25 CFM flow capacity handles a wide range of shop and light industrial air demand
• 250 psi maximum working pressure compatible with standard industrial compressor output
• NPT end connections allow direct threaded inline installation without adapters
• Removes dust, oil, particulate, and water contamination from compressed air streams
• 130 degrees F maximum temperature rating suits typical compressor downstream conditions

Compatibility

Designed as an OEM-style inline filter separator for compressed air systems using NPT threaded connections, suitable for applications requiring contamination removal at up to 25 CFM and 250 psi.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air piping systems. Depressurize and isolate the air line completely before installing or servicing this unit. NPT threads should be sealed with appropriate thread sealant tape or compound rated for compressed air service. Verify that system pressure and flow do not exceed the rated maximums before returning the line to service.
