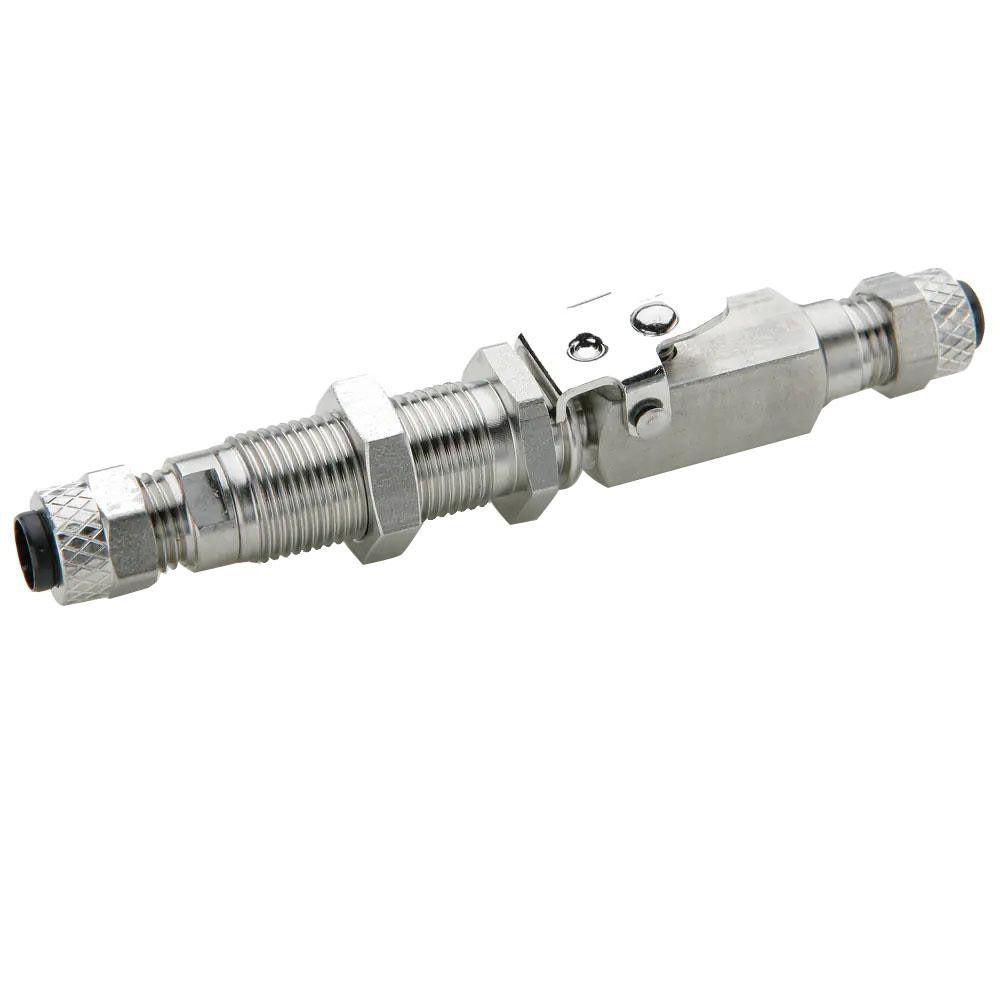

Parker 394PDSS-4-4 Bulkhead Coupler 316 Ss 150 Psi

Product Description

The PARKER 394PDSS-4-4 is a double end shutoff bulkhead coupler with compression x compression end connections, constructed from 316 stainless steel. It is designed to allow tubing lines to pass through a panel or bulkhead while providing shutoff capability at both ends of the connection. The coupler is rated to a maximum working pressure of 150 psi and is suited for installations requiring corrosion-resistant fittings in fluid or pneumatic systems. It weighs 0.65 pounds and is sold individually. Licensed plumbers, pipefitters, and instrumentation technicians are the primary installers of this type of fitting.

This bulkhead coupler is used in applications where a compression tube line must be routed through a wall, enclosure, or panel. The double end shutoff function isolates flow on both sides of the bulkhead during disconnection, making it appropriate for controlled-environment fluid handling, instrumentation lines, and process piping panels. The 316 stainless steel construction offers resistance to corrosion and chemical exposure. It operates within a temperature range of 0 degrees F to 65 degrees C (approximately 149 degrees F), making it suitable for a range of indoor and light industrial service environments.

Key Features

• Double end shutoff design isolates flow on both sides of the bulkhead upon disconnection
• 316 stainless steel construction provides corrosion and chemical resistance
• Compression x compression end connections for tool-accessible, leak-resistant tube terminations
• Rated to 150 psi maximum working pressure
• Bulkhead-style body allows through-panel installation of tubing lines
• Sold individually with a minimum order quantity of one

Compatibility

Designed as an OEM-style replacement or new-installation fitting for compression tube systems requiring bulkhead pass-through with double end shutoff capability.

Installation Notes

Installation is typically performed by a licensed pipefitter, plumber, or instrumentation technician. Shut off and depressurize the system completely before removing or installing any compression fitting. Use appropriate tube preparation tools to ensure a clean, square tube cut before seating the compression ferrule. Follow applicable plumbing and fluid system codes for the specific service environment.
