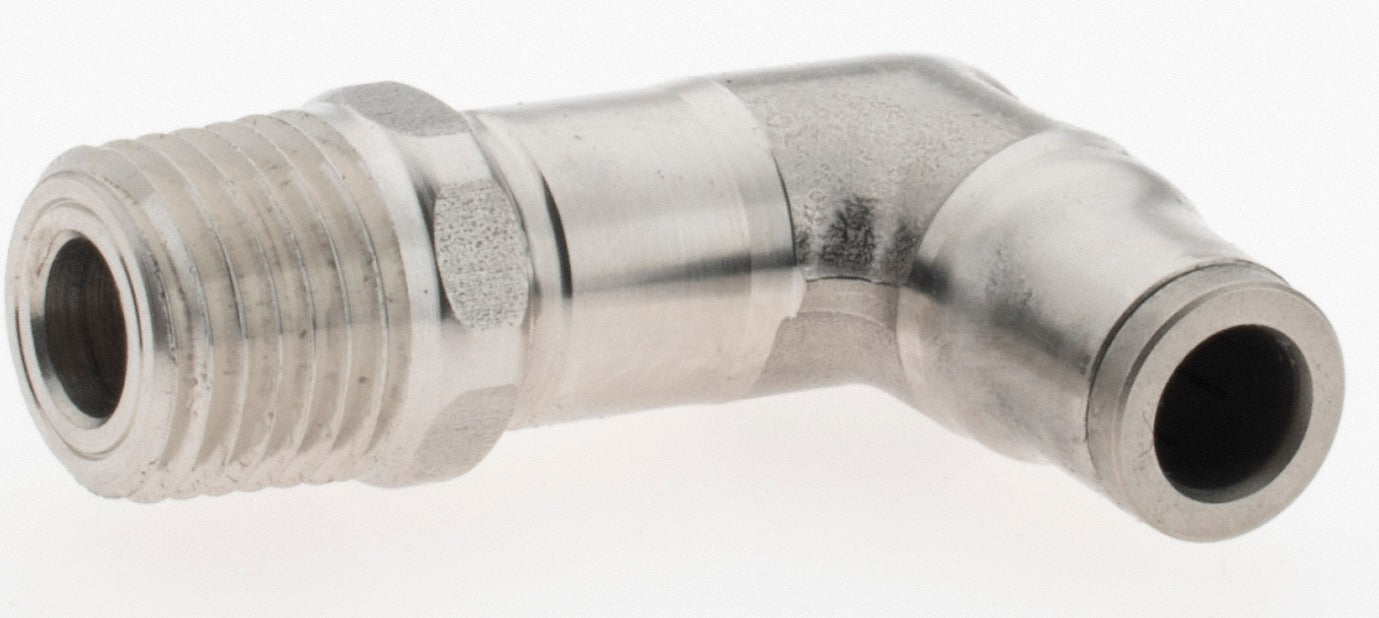

Parker 38090614 Extended Male Elbow Fitting 1/4 in Npt

Product Description

The PARKER 38090614 is a push-to-connect extended male elbow tube fitting designed for fluid and pneumatic line connections requiring a 90-degree directional change. Constructed from stainless steel, this fitting accepts tube-to-male NPT-to-tube-to-male connections and holds a maximum working pressure of 435 psi. The push-to-connect design allows fast, tool-free tube insertion while the extended male NPT thread provides added reach for tight or offset installations. FKM o-ring seals deliver reliable performance across a wide service temperature range of -13 degrees F to 302 degrees F. Licensed plumbers, pipefitters, and industrial maintenance technicians install this fitting in fluid handling, pneumatic, and process piping systems.

This fitting is suited for use in both light industrial and process applications where stainless steel corrosion resistance is required. The 6 mm outside diameter tube connection pairs with a 1/4 in NPT male thread. Its certifications cover food-grade, ATEX, RoHS, REACH, FDA, and PED requirements, making it appropriate for sanitary, hazardous-area, and pressure equipment installations. Sold in a package quantity of 2.

Key Features

• Push-to-connect design for fast, tool-free tube insertion and removal
• Stainless steel body for corrosion resistance in demanding service environments
• Maximum working pressure of 435 psi
• FKM o-ring seals rated from -13 degrees F to 302 degrees F
• Extended male NPT thread for reach in offset or recessed port installations
• Certified to ATEX, RoHS, REACH, FDA 21 CFR, NSF H1 USDA, and ISO 14743

Compatibility

Designed for push-to-connect tube systems using 6 mm outside diameter tubing with 1/4 in NPT male ported connections in fluid handling, pneumatic, and process piping applications.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or industrial maintenance technicians. De-energize or depressurize the system fully before servicing any fitting. Ensure tube ends are cut cleanly and squarely and are free of burrs before inserting into the push-to-connect port. NPT threads should be sealed with an appropriate thread sealant and tightened to system specifications in accordance with applicable piping codes.
