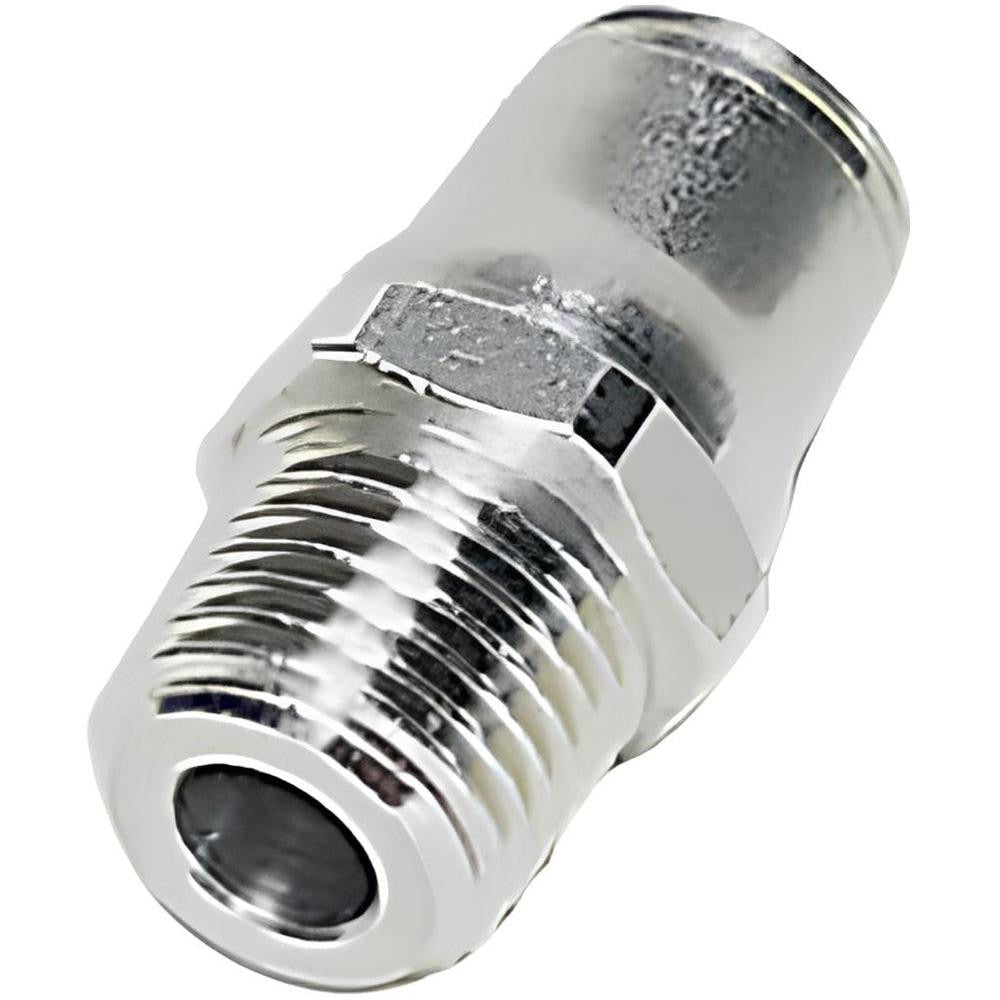

Parker 38050611 Push-to-connect Npt Tube Fitting Ss

Product Description

The PARKER 38050611 is a push-to-connect tube to male NPT tube fitting constructed from stainless steel and rated to 435 psi. It uses a tube x MNPT x tube x male connection configuration, making it suitable for inline installations where a push-to-connect interface meets a male NPT threaded port. The 1/8 inch NPT thread size and FKM o-ring seal material support use across a broad range of fluid and gas handling applications. Licensed plumbers, pipefitters, and industrial maintenance technicians typically install this fitting in process piping, instrumentation lines, and fluid transfer systems where quick, reliable connections are required.

This fitting is designed for demanding service environments including medical equipment, chemical transfer, pharmaceutical processing, petrochemical systems, paper industry operations, and food processing lines. Its stainless steel body and FKM seal material provide corrosion resistance and compatibility with aggressive media. The 6.00 mm tube outside diameter accommodates standard metric tubing commonly found in instrumentation and light process applications. This package contains 2 fittings per unit.

Key Features

• Push-to-connect tube x MNPT x tube x male connection type for fast, tool-free tube insertion
• Stainless steel body rated to 435 psi for use in high-pressure and corrosive service
• FKM o-ring seal material compatible with a wide range of chemical and fluid media
• 1/8 inch NPT male thread for direct connection to standard NPT-ported equipment
• Meets multiple certifications including RoHS, ATEX, PED, REACH, NSF H1, USDA, FDA (21 CFR), and ISO 14743
• UL94 V-0 rated seal material for flame classification compliance

Compatibility

Designed for use with medical equipment, chemical transfer systems, pharmaceutical processing, petrochemical applications, paper industry equipment, and food processing lines where a 6.00 mm outside diameter tube and 1/8 inch NPT male thread interface are required.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or instrumentation technician familiar with push-to-connect fittings and NPT thread sealing practices. Shut off and depressurize the system completely before removing or installing fittings. Ensure tubing is cut cleanly and squarely and that the outside diameter is within specification before insertion. NPT threads should be sealed with an approved thread sealant compatible with the process media and applicable to food, pharmaceutical, or chemical service as required by the installation environment.
