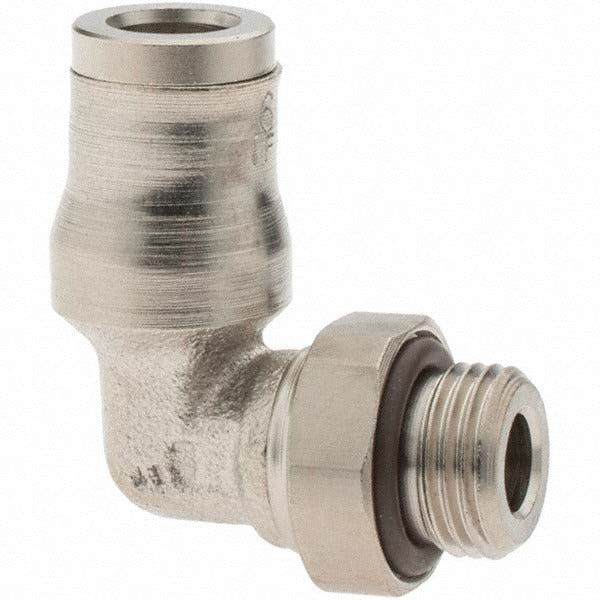

Parker 36990610 Male Elbow Push-to-connect 6mm Bspp

Product Description

The PARKER 36990610 is a push-to-connect male elbow tube fitting designed for fast, tool-free tube connections in compressed air, pneumatic, and fluid systems. Constructed from nickel-plated brass, it accepts 6 mm outside diameter tubing and connects to a 1/8 inch BSPP male thread. The fitting is rated to 435 psi maximum working pressure and handles fluid and gas service across a temperature range of -13 degrees F to 302 degrees F. The FKM o-ring provides reliable sealing for both liquid and gas media. Licensed plumbers, pipefitters, and pneumatic system technicians typically install this fitting in industrial and OEM plumbing assemblies.

This fitting is suited for residential and commercial pneumatic lines, fluid distribution manifolds, and process piping where a 90-degree directional change is required at a threaded port. The tube-to-male connection style allows quick field assembly without soldering or ferrule compression. Its compact profile makes it practical in tight panel or enclosure installations where standard fittings cannot be oriented freely. Compliance with RoHS, ATEX, PED, REACH, and FDA 21CFR standards makes it appropriate for a wide range of regulated applications including food-grade and hazardous-area installations.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and release
• Nickel-plated brass body resists corrosion in wet and humid environments
• Rated to 435 psi maximum working pressure for demanding pneumatic and fluid service
• FKM o-ring sealing compatible with a broad range of liquids and gases
• Wide temperature range from -13 degrees F to 302 degrees F
• Meets RoHS, ATEX, PED, REACH, ISO 14743, UL94 V-0, and FDA 21CFR standards

Compatibility

Designed for use with 6 mm OD tubing on systems with 1/8 inch BSPP male threaded ports; suitable for both liquid and gas media in pneumatic, compressed air, and fluid distribution applications.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or pneumatic system technicians. Depressurize and de-energize the system fully before removing or installing any fitting. Verify that the mating BSPP thread is clean and undamaged before engagement; BSPP is a parallel thread and relies on the o-ring face seal for pressure containment. Insert tubing to full depth until it seats against the fitting stop to ensure a leak-free push-to-connect seal.
